-13-
W1677/W1711 10" Table Saw
ELECTRICAL
ELECTRICAL
We do not recommend using an extension cord with your
machine. If you have no other choice, use the following
guidelines:
• Use cords rated for Standard Service
• Never exceed a length of 50 feet
• Ensure cord has a ground wire and pin
• Do not use cords in need of repair
Extension Cords
Grounding
This machine must be grounded! Verify that any exist-
ing electrical outlet and circuit you intend to plug into
is actually grounded. If it is not, it will be necessary to
run a separate copper grounding wire, of the appropri
-
ate size, from the outlet to a known ground. Under no
circumstances should you connect your machine to an
ungrounded power source or electrocution or sever
e
shock could occur.
220V Operation
The Model W1677/W1711 is prewired for 220V operation.
Always connect this machine to a dedicated circuit with a
verified ground, using
the recommended circuit size and
power connection method stated below.
Never replace a circuit breaker with one of higher amper
-
age without consulting a qualified electrician to ensure
compliance with wiring codes
. If you are unsure about
the wiring codes in your area or plan to connect your
machine to a shared circuit, you may create a fire haz
-
ard—consult a qualified electrician to reduce this risk.
Electrocution or severe shock could
occur if machine is not grounded.
L6-20 P
L6-20 R
L6-30 P
L6-30 R

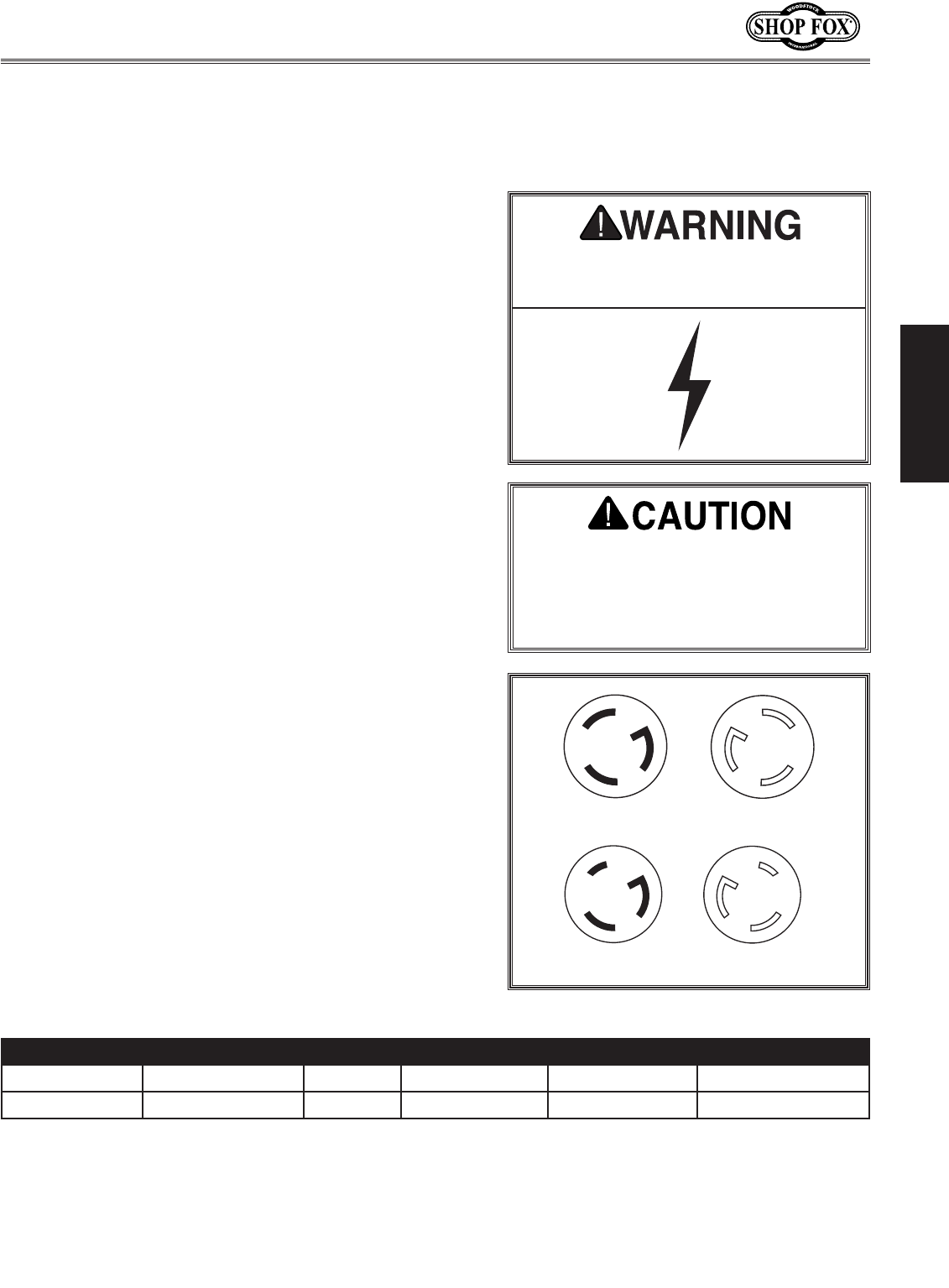

Figure 11. Plug & receptacle examples.
Model Operating Voltage Amp Draw Min. Circuit Size Plug/Receptacle Extension Cord
W1677 Series 220V 18 Amps 20A NEMA L6-20 12 Gauge
W1711 Series 220V 25 Amps 30A NEMA L6-30 8 Gauge
Replacing an existing circuit breaker
with one rated for higher amperage
may result in a fire. Get help from an
electrician if your circuit is too small
for the machine.
