8 Freedom SW 3000 Owner’s Guide
Freedom SW 3000 Inverter/Charger Features

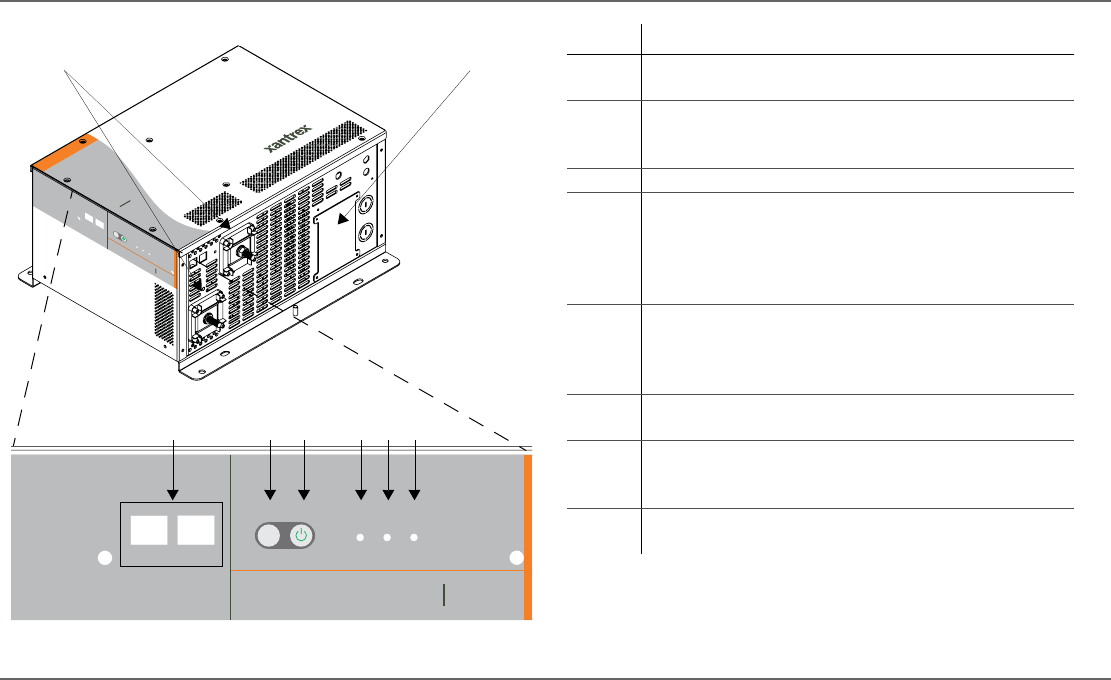

Figure 4
Isometric View of the Front Panel and AC/DC Side Panel
FREEDOM SW 3000
Inverter
Reset Enable
Inverter AC/
On Charge Fault
Xanbus Interface
FREEDOM SW
3000
I
nver
t
er
R
eset Enable
In
verter A
C/
On
Cha
rge Fault
Xanbus In
ter
fa
ce
FREEDOM SW 3000
3
1
4
2
56
78
Item Description
1 DC terminals. See “AC and DC Side Panels” on page 9
for more information.
2 AC wiring compartment access panel with
compartment cover on. See “AC and DC Side Panels” on
page 9 for more information.
3 Fault light illuminates if a fault condition occurs.
4 AC/Charge light illuminates when the Freedom SW
3000 is in charge mode and is producing DC output to
charge your batteries. AC/Charge also illuminates when
you are connected to an AC source like the utility grid or
a generator and the AC is qualified.
5 Inverter On indicates the unit is in invert mode.
NOTE: If AC is present and invert mode is enabled, this
light remains illuminated even though AC power is being
passed through.
6 Inverter Enable button is used to switch the inverter on
and off.
7 Reset button is used to clear any active faults if pressed
momentarily. If held down for more than three seconds,
the unit will reset (reboot) itself.
8 Xanbus Interface ports are used to connect Xanbus-
enabled devices including the optional SCP and AGS.
