Cisco 12000/10700 v3.1.1 Router Manager User Guide
OL-4455-01
Chapter 16 MPLS VRF Management
VRF Fault Management

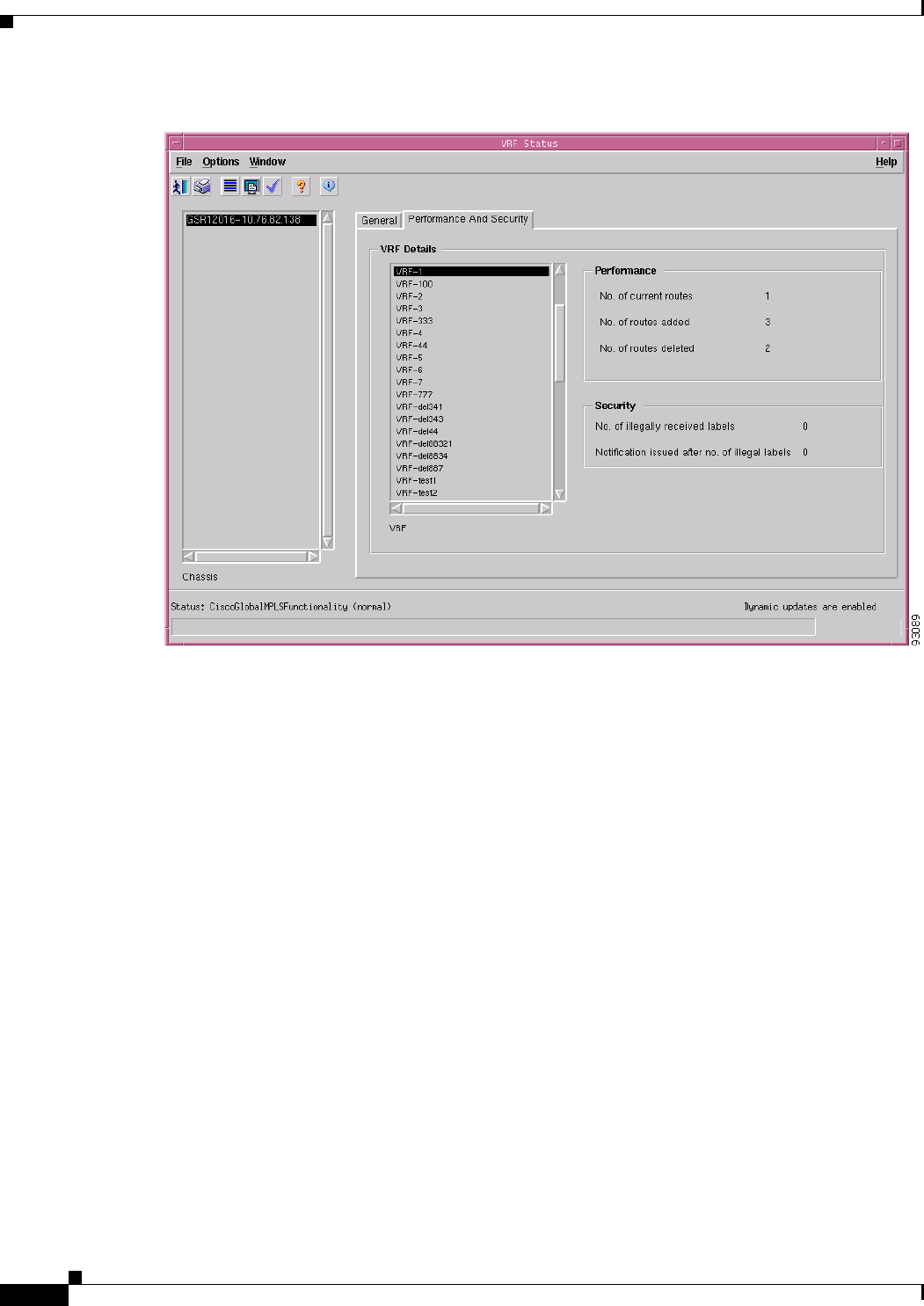

Figure 16-12 VRF Status WindowPerformance and Security Tab
VRF Details
The VRF Details area displays the following information:
VRF ListList of VRFs configured in the device.
Performance
The Performance area displays the following information:
No. of Current RoutesDisplays the number of routes currently used by this VRF.
No. of Routes AddedDisplays the number of routes added to this VPN/VRF over the coarse of its
lifetime.
No. of Routes DeletedDisplays the number of routes removed from this VPN/VRF.
Security
The Security area displays the following information:
No. of illegally received labelsIndicates the number of illegally received labels on this VPN/VRF.
No. of illegal labels threshold valueThe number of illegally received labels above which the
notification is issued.
