INSTRUCTIONS FOR PUTTING
INTO USE
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set up
or use of this product.
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Turn the Trigger of the tool to its
“OFF” position and unplug the
tool from its electrical outlet
before assembling or making any
adjustments to the tool.
Note: For additional information regarding the
parts listed in the following pages, refer
to the Assembly Diagram near the end of
this manual.
Note: In some cases, due to variations in
packaging, you may have to install the
Spade Handle and Auxiliary Handle.
Align the Spade Handle (31) with the 1.
Back Case (32). Insert the Spade Handle
Knob (30) through the Spade Handle into
the Back Case. Tighten the Spade Han-
dle Knob by turning clockwise until tight.
Insert the Screw (14) through the Side 2.
Handle (15). Position the Side Handle
on the Gear Housing Cover (22). Using
a screwdriver (not included) tighten the
Screw (14) until tight.
Note: Periodically check to be sure the
handles remain tight. Do not reposition
the handles while the tool is running or
plugged in.

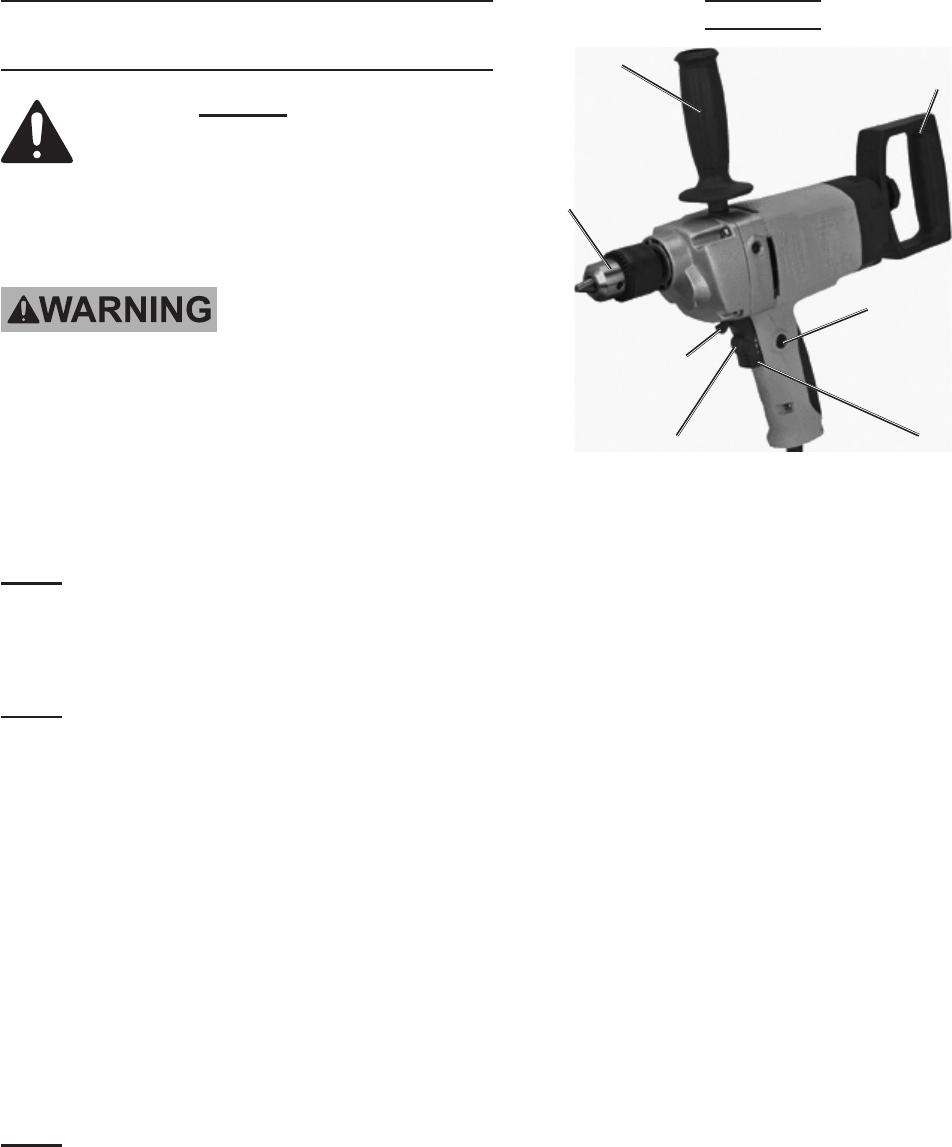

Features
Chuck
Side
Handle
Spade
Handle
Trigger Lock
Direction Switch
Speed Control Trigger
This tool incorporates a double gear re-
duction transmission to reduce drill speed
while increasing torque. This design
improves performance when drilling large
holes. This feature also helps prevent
the tool from “bogging down” or stopping
when under heavy load.
