ADJUSTMENTS
ADJUSTING THE TABLE TILT
For any bevel sanding operation,
you must use a table insert with an
oblong-shaped opening. Failure to do so may lead
to serious injury and / or damage to machine or the
work piece.
• Loosen both table tilt locking levers. (see Figure 10).
• Tilt the table until the pointer is at the desired angle.
• Re-tighten both locking levers.

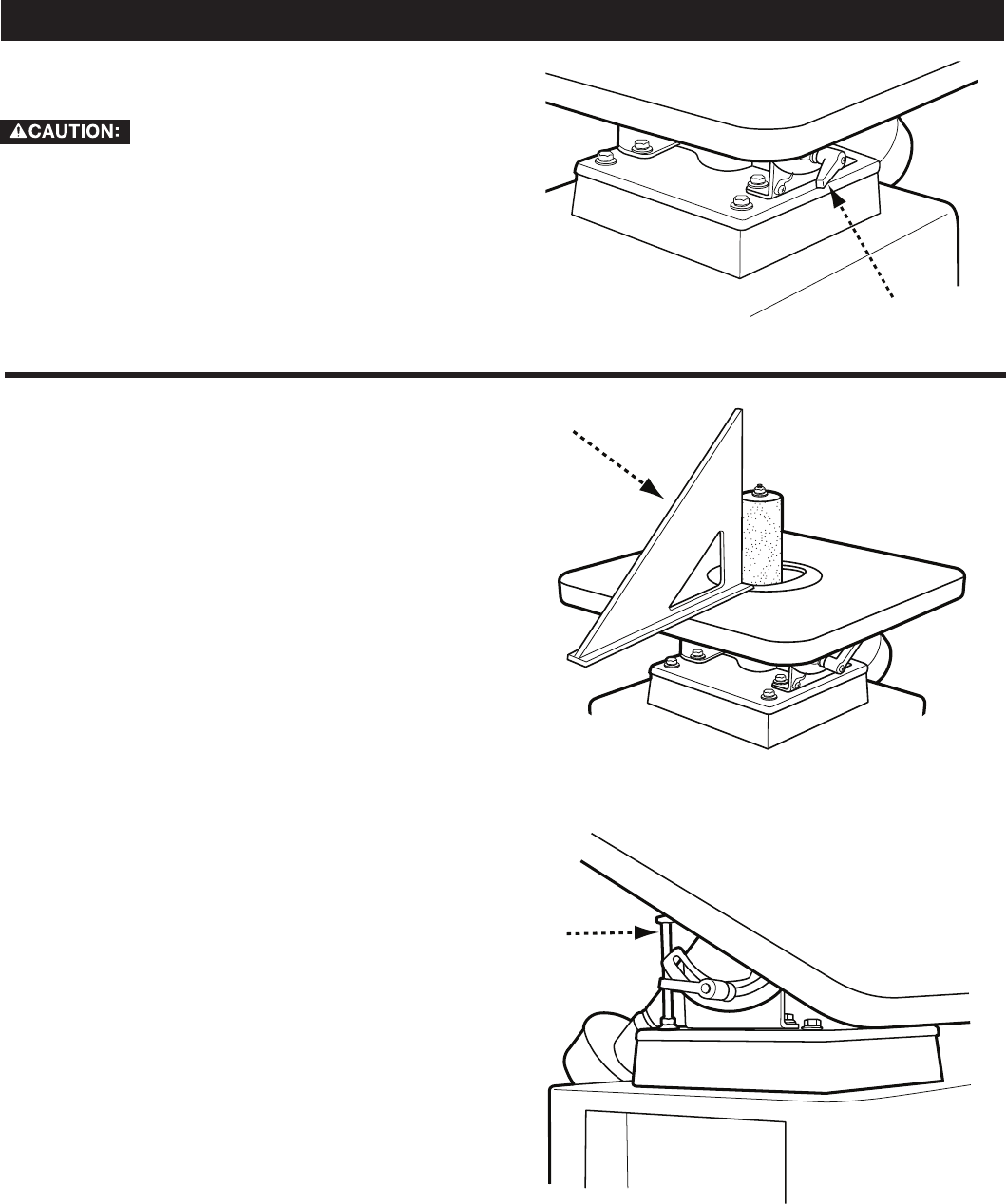

FIGURE 10
SQUARING THE TABLE TO THE
SPINDLE
When sanding with the table positioned at 90°, it is
important that the table surface be square to the
sanding spindle. Periodically, it is a good idea to ensure
proper alignment between the table and spindle.
With a spindle installed, use a square to check the
position of the table relative to the sanding spindle (see
Figure 11). The square should be flat against the table
and the spindle from both front and back.
If the table and sanding spindle are not square, use the
following procedure.
• Ensure the table tilt indicator is at 90°.
• Unlock both table tilt levers .
• Adjust the fixed stop as shown in Figure 12.
• Lock both table tilt levers and use a square to
re-check table/spindle alignment.
• Repeat steps 2-4 until the table surface and sanding
spindle are perpendicular.
• Make sure the pointer reads 90°. If the pointer needs
to be adjusted loosen the screw and adjust to the
correct position.
