ADJUSTING THE FENCE
90 DEGREES TO THE BLADE

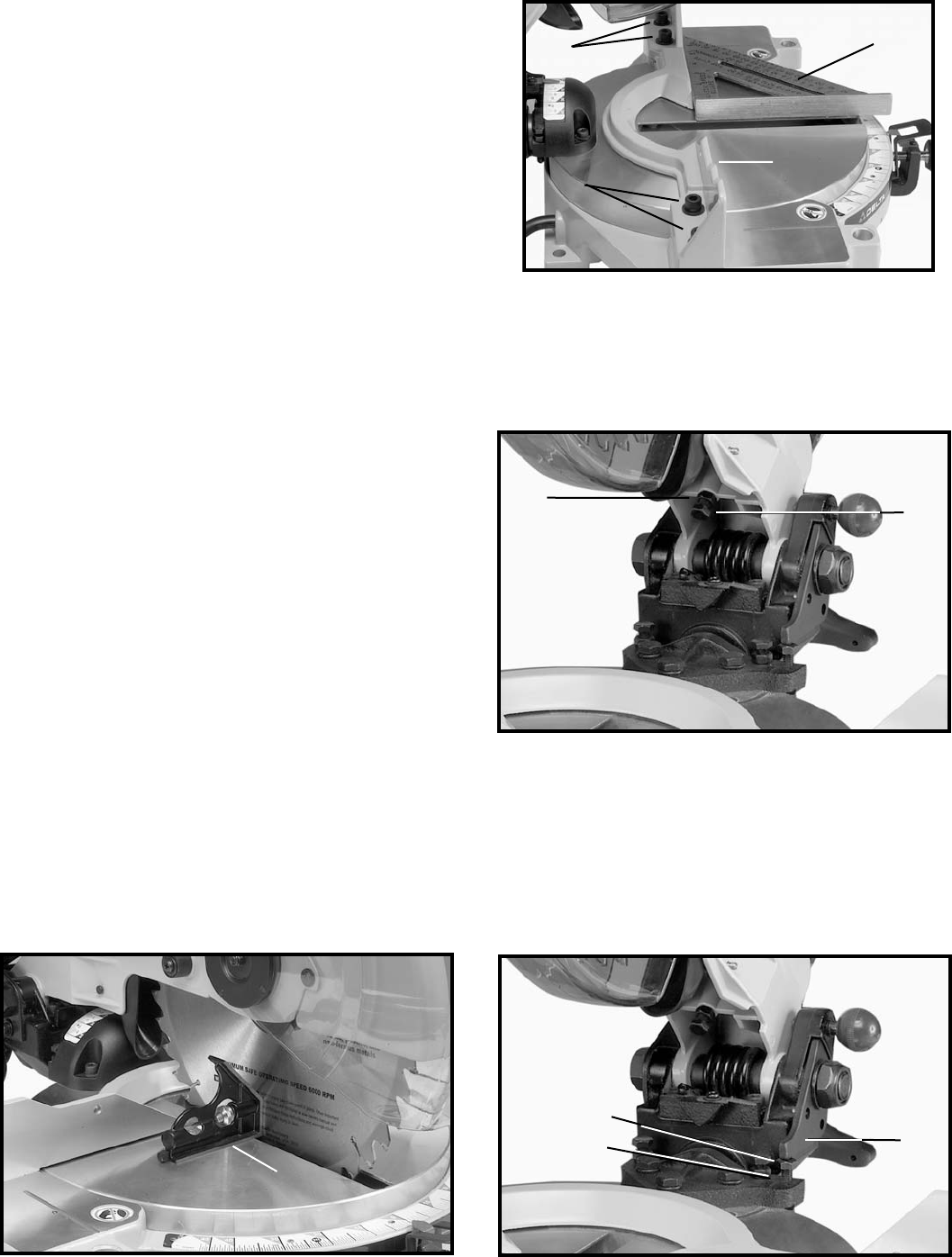

The fence (A) Fig. 27 should be adjusted so that it is 90
degrees to the blade. To adjust:
1. DISCONNECT TOOL FROM POWER SOURCE.
2. First, adjust the blade so that it is parallel to the table
slot.
3. Use a square (B) Fig. 27 with one end against the
fence (A) and the other end against the slot in the table.
4. Loosen the four screws (C) Fig. 27, adjust the fence
90 degrees to the table opening, and tighten the four
screws (C).
ADJUSTING DOWNWARD
TRAVEL OF SAW BLADE
1. DISCONNECT TOOL FROM POWER SOURCE.
2. The downward travel of the saw blade should be
limited to prevent the saw blade from contacting metal
surfaces on the machine. Make this adjustment by loos-
ening the locknut (A) Fig. 28 and turning the adjusting
screw (B) in or out. NOTE: The bevel cover has been
removed in Fig. 28 for clarity.
3. Lower the blade as far as possible. Check again to
see that the saw is disconnected from the power
source. Rotate the blade by hand to make certain the
teeth do not contact any metal surfaces.
4. After the downward travel of the saw blade has been
adjusted, tighten locknut (A) Fig. 28.
C
C
B
A
B
Fig. 29
Fig. 30
A
C
B
D
ADJUSTING 0 AND 45 DEGREE BEVEL STOPS
1. DISCONNECT TOOL FROM POWER SOURCE.
A
