OPERATING CONTROLS AND ADJUSTMENTS
TABLE HAZARD AREA
WARNING: THE AREA INSIDE THE TWO RED
LINES (A) FIG. 15 ON THE TABLE IS DESIGNATED
AS A HAZARD ZONE. NEVER PLACE YOUR
HANDS INSIDE THIS AREA WHILE OPERATING
THE TOOL.
Fig. 15
A
Fig. 13
FASTENING MACHINE TO SUPPORTING SURFACE
Fig. 14
ATTACHING
DUST BAG

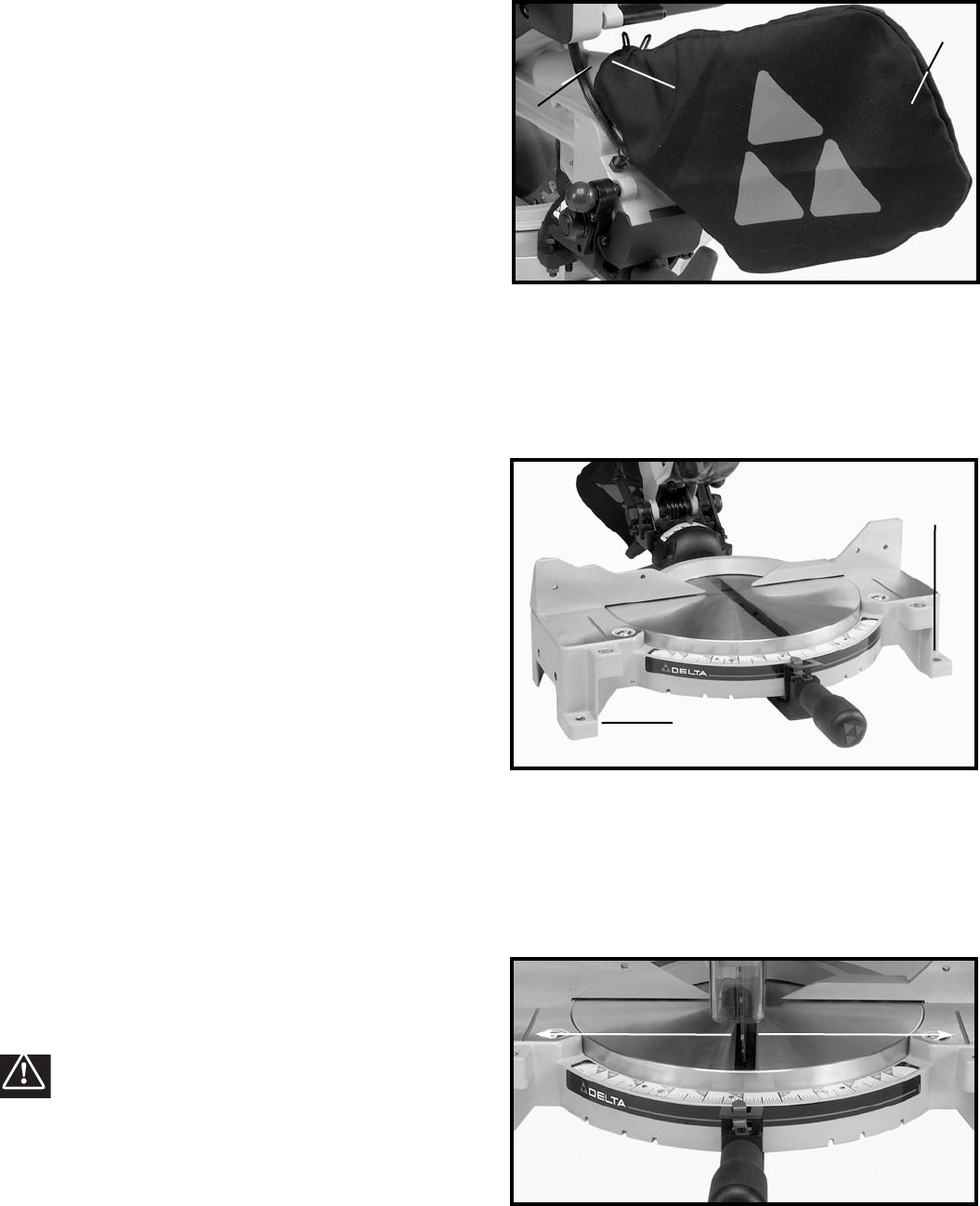

1. Attach the dust bag (A) Fig. 13, to the dust spout
(B). Be certain that the wire ring (C) is engaged in the
spout groove.
Before operating this tool, firmly mount it to a sturdy
workbench or other supporting surface. Four holes are
provided, two of which are shown at (A) Fig. 14, for this
purpose.
If the tool is to be moved frequently, mount it to a 3/4″
piece of plywood. Clamp the plywood to a supporting
surface using “C” clamps.
A
C
B
A
A
