SKU 42827 For technical questions, please call 1-800-444-3353. Page 12
NOTICE: 110 Volt systems deliver highly energetic currents which are
capable of causing lethal injury.
Do not operate this machine without rst obtaining professional installation
and safety inspection to prevent operator injury.
ELECTRICAL WIRING
NOTE: This machine is designed to operate on 110 Volt/60 Hz Single Phase power supply only.
This machine is supplied with a 3-prong grounded plug. Use only a power supply which is
grounded, and which is protected by an appropriate circuit breaker. Check with a qualied
electrician before using this machine.
Serious injury or damage to property can result from improper electrical connection.

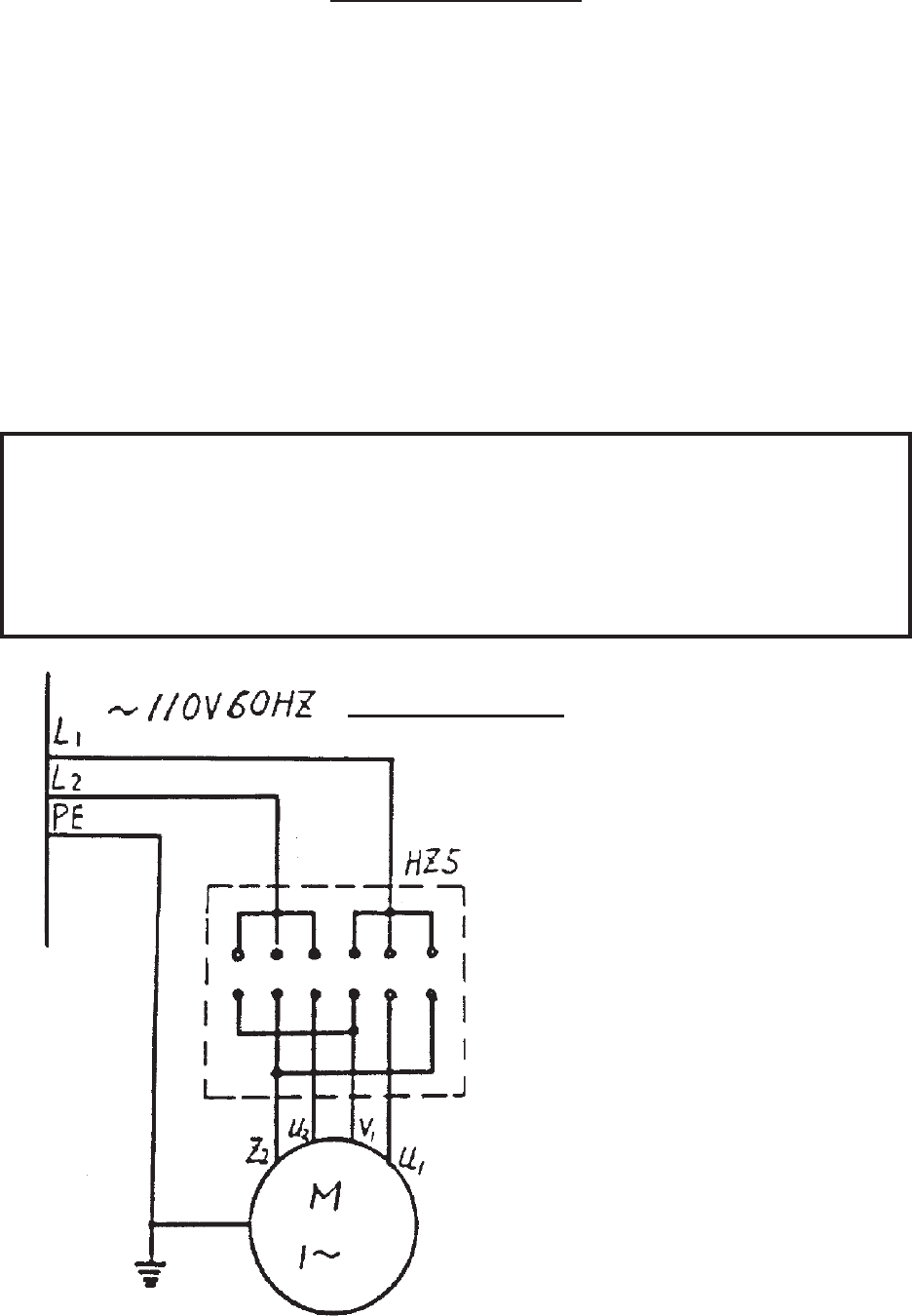

WIRING DIAGRAM
WIRING DIAGRAM KEY
1 0 2
L1-V1 X - -
L1-Z2 - - X
L2-Z2 X - -
L2-V1 - - X
L1-U1 X - X
L2-U2 X - X
Figure 8. Wiring Diagram.
