SKU 42827 For technical questions, please call 1-800-444-3353. Page 5

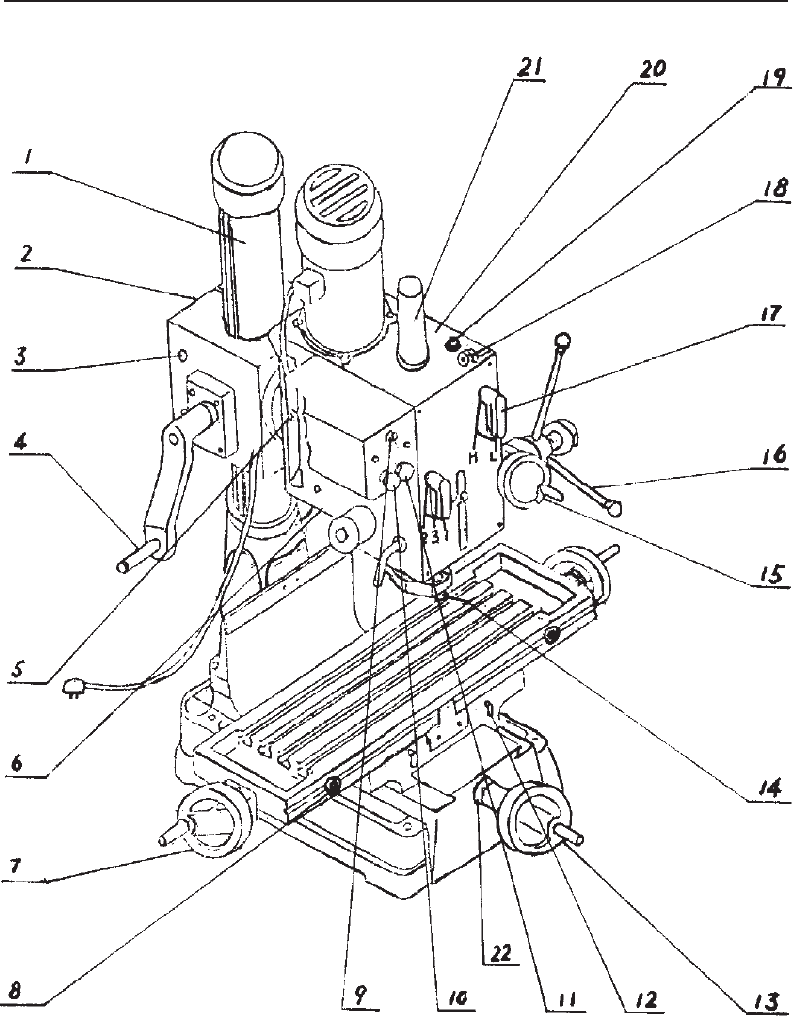

FEATURES AND CONTROLS OF THE #42827 DRILL / MILL MACHINE
1. Column
2. Head Collar
3. Head Collar Lock Bolt
4. Head Crank
5. Lock Nut
6. Oil Drain Plug
7. Table Feed Wheel
8. Travel Stop
9. Knob
10. Red Bush Button
11. Green Push Button
12. Leaf Screw
13. Cross Table Feed Wheel
14. Positive Depth Stop Gauge
15. Spindle Micro Feed Handle
16. Spindle Feed Handle
17. Speed Lever
18. Air Flow Plug
19. Oil Filler Plug
20. Head Body
21. Arbor Bolt Cover
22. Scale
Figure 1.
