SKU 99640 For technical questions, please call 1-800-444-3353. Page 10
3. Push Side Load Magazine forward
and press Lock to unfasten Pusher.
Loading Staples:
1. Pull the Pusher (56) back to the end
of Magazine (52). Lock Pusher in
place by using Safety Lock (54).
Then pull Side Load Magazine (61)
back.
2. Place a full clip of 1/2” Crown Staples
or 1-1/2” - 2” Cleat Nails in the Maga-
zine (52) from the top. Up to 120
Crown Staples may be loaded into
Nailer.
3. Push Side Load Magazine forward
and press Lock to unfasten Pusher.
Operating Floor Nailer
1. WARNING! Extreme caution must
be used whenever this tool is con-
nected to an air supply. If the tool is
dropped, or if the Hammer Face (2) is
accidentally struck, then the tool will
re a nail or staple, potentially caus-
ing SEVERE PERSONAL INJURY.
2. Attach the Floor Nailer to the air sup-
ply at the Quick Connector. Start
your compressor and check the
pressure, making sure it is set at the
recommended 70-120 PSI. Do not
exceed the maximum 120 PSI.
3. WARNING! Keep your feet clear of
the Floor Nailer.
4. NOTE: Before using on a oor, test
the tool on a scrap piece of wood.
Adjust the driving depth by provid-
ing more or less air pressure. Never
exceed 120 PSI.
5. Hold the Hand Grip (81) securely and
press the Spacer (36) to the work
surface, making sure the Spacer is
over the nail/staple target position.

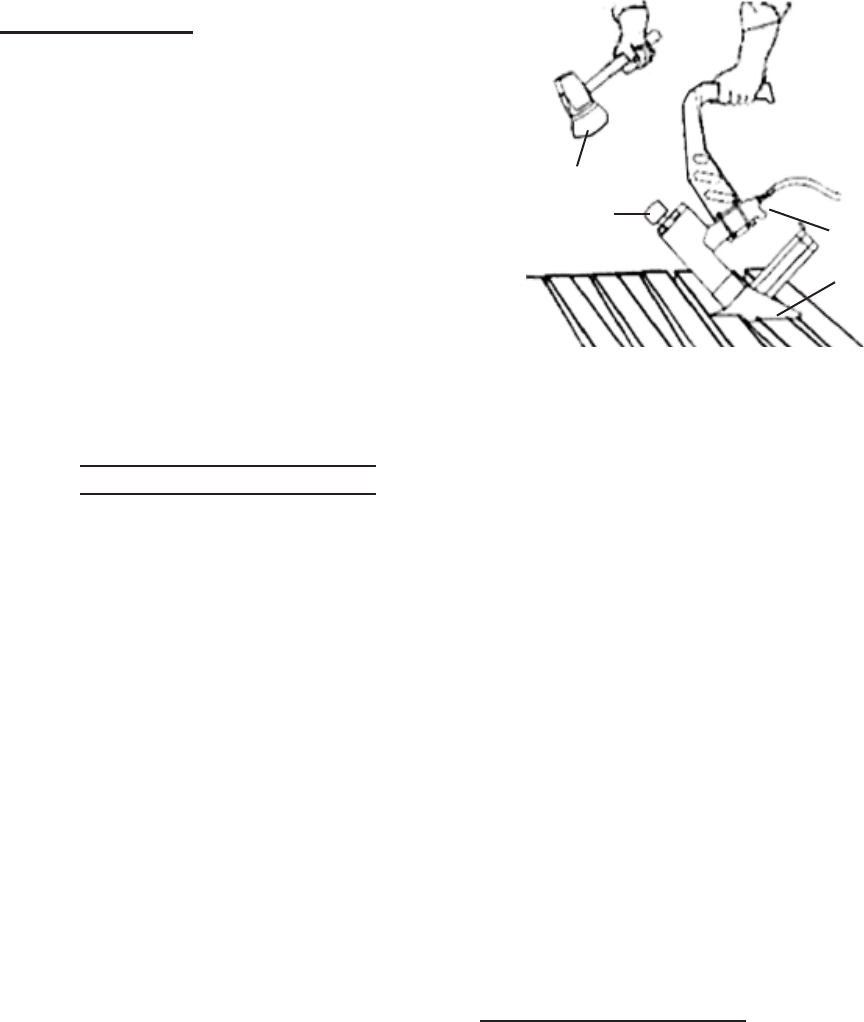

6.
Hammer (1)
Hammer
Face (2)
Hand Grip (81)
Spacer
(37)
Work Surface
Press down hard so that the Spacer
(36) is rmly contacting the work
surface. Then, using the Hammer (1),
strike the Hammer Face (2) rmly
to drive the fastener into work sur-
face. Lift the Floor Nailer off the work
surface. Repeat this process until the
job is completed.
7. WARNING! After disconnecting Nail-
er from air compressor, there could
still be enough air pressure to re
Nailer. After the air hose is discon-
nected, always re Nailer into scrap
wood repeatedly to make sure all of
compressed air is expended.
8. When nished, make sure to store
the Floor Nailer in a clean, dry, safe
location out of reach of children and
other unauthorized people.
To Change The Spacer:
The Floor Nailer is designed to install
1/2” and 25/32” hardwood ooring.
The tool is factory set with a 1/4” thick
shoe plate for 25/32” hardwood oor-
ing. An additional 5/16” thick shoe
plate is also include for installing 1/2”
Rev 09i, 10d
