1. Incorporate an in-line oiler, shut-off

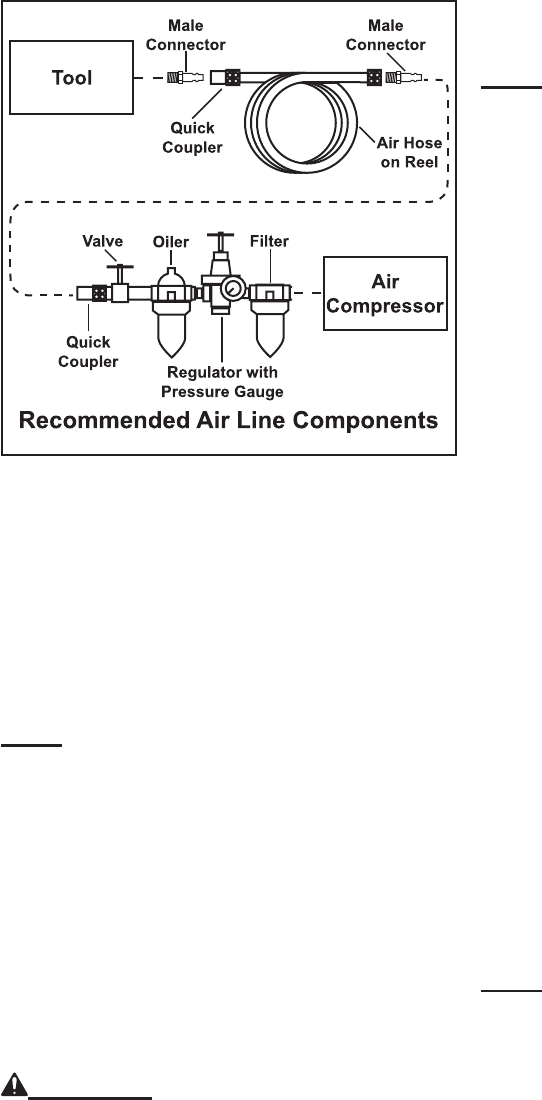

valve, regulator with pressure gauge,
and lter for best service, as shown in
the diagram above. An in-line shut-
off valve is an important safety
device because it controls the air
supply even if the air hose is rup-
tured.
Note: If an automatic oiler system is not
used, add a few drops of Pneumatic
Tool Oil to the airline connection be-
fore operation. Add a few more drops
after each hour of continual use.
2. Attach an air hose to the compres-
sor’s air outlet. Connect the air hose
to the air inlet of the tool. Other com-
ponents, such as a connector and
quick coupler, will make operation
more efcient, but are not required.
WARNING! TO PREVENT SERIOUS
INJURY FROM ACCIDENTAL
OPERATION: Do not install a
female quick coupler on the tool.
Such a coupler contains an air valve
that will allow the air tool to retain
pressure and operate accidentally
after the air supply is disconnected.
Note: Air ow, and therefore tool perfor-
mance, can be hindered by under-
sized air supply components.
3. The air hose must be long enough
to reach the work area with enough
extra length to allow free movement
while working.
4. Close the in-line safety valve be-
tween the compressor and the tool.
5. Turn on the air compressor according
to the manufacturer’s directions and
allow it to build up pressure until it
cycles off.
6. Adjust the air compressor’s output
regulator so that the air output is
enough to properly power the tool,
but the output will not exceed the
tool’s maximum air pressure at any
time. Adjust the pressure gradually,
while checking the air output gauge
to set the right pressure range.
7. Inspect the air connections for leaks.
Repair any leaks found.
8. If the tool will not be used at this time,
turn off and detach the air supply
and safely discharge any residual air
pressure.
Note: Residual air pressure should not be
present after the tool is disconnected
from the air supply. However, it is a
good safety measure to attempt to
discharge the tool in a safe fashion
after disconnecting to ensure that the
tool is disconnected and unpowered.
