RIPPING (Fig. W, X)
WARNING
To prevent serious injury:
Never use a miter gauge when ripping.
Do not allow familiarity or frequent use of your table
saw to cause careless mistakes. Remember that even
a careless fraction of a second is enough to cause a
severe injury.
Keep both hands away from the blade and clear from
the path of the blade.
The workpiece must have a straight edge against the
fence and must not be warped, twisted, or bowed
when ripping.
1. Remove the miter gauge and store it in the "storage"
compartment in the base of the saw.
2. Secure the rip fence to the table.
3. Raise the blade so it is about 1/8" higher than the top
of the workpiece.
4. Place the workpiece flat on the table and against the
fence. Keep the workpiece away from the blade.
5. Turn the saw ON and wait for the blade to come to
full speed.
6. Slowly feed the workpiece into the blade by pushing
forward only on the workpiece section (1) that will
pass between the blade and the fence. (Fig. W)
WARNING
AVOID KICKBACK by pushing forward on the section of
the workpiece that passes between the blade and the
fence. Never perform any freehand operations.

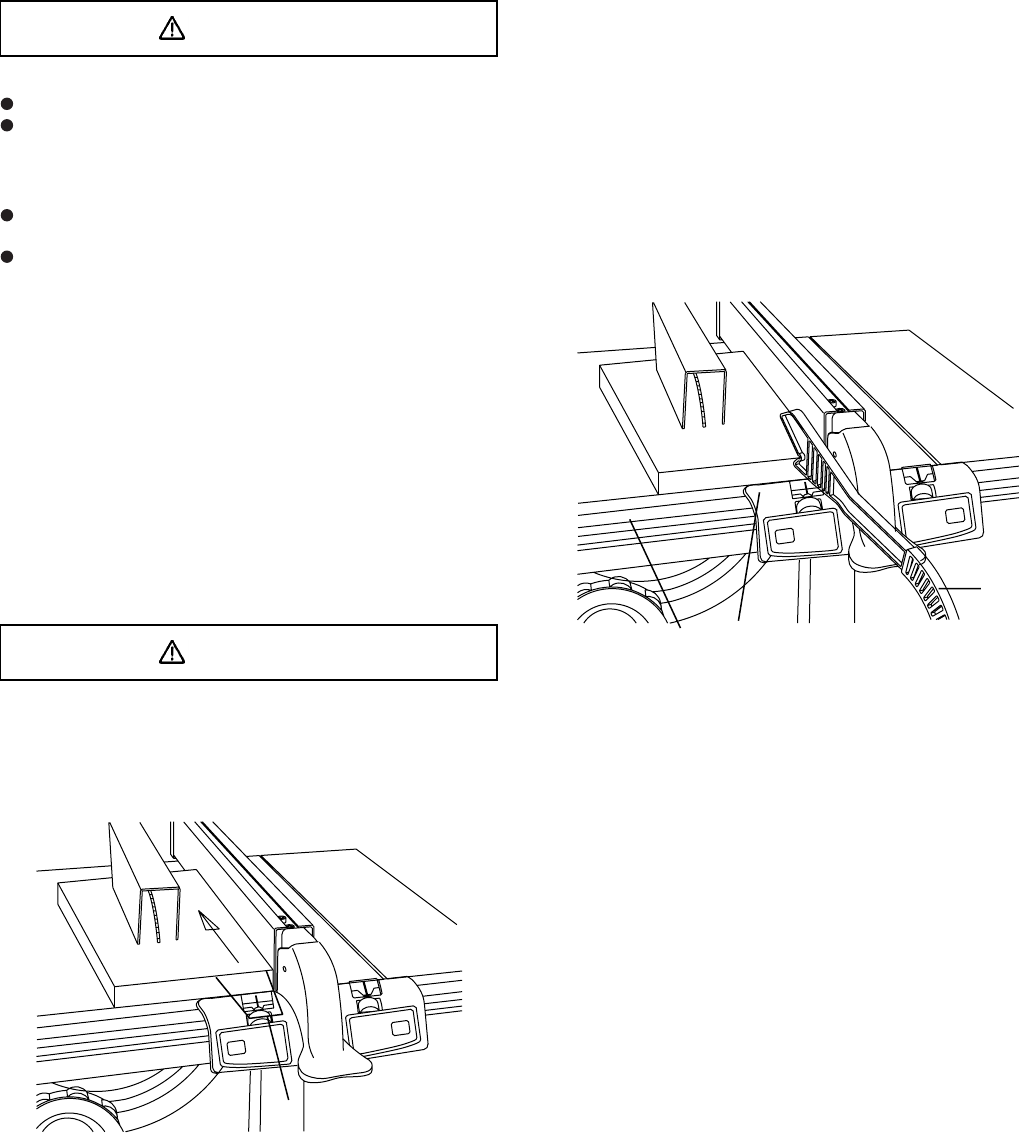

Fig. W
P
U
S
H
M
i
c
r
o
A
d
j
u
s
t
men
t
P
U
S
H
M i
c
r
o
A
d
ju
s
t
me
n
t
1
NOTE: Always use a push stick. When width of the rip is
narrower than 2" the push stick cannot be used because
the guard will interfere... therefore, use the auxiliary fence
so the push stick can be used as shown on page 26.
7. Keep your thumbs off the table top. When both of
your thumbs touch the front edge of the table (2),
finish the cut with a push stick. To make an additional
push stick, use the pattern on page 26.
8. The push stick (3) should always be used. (Fig. X)
9. Continue pushing the workpiece with the push stick
(3) until it passes through the blade guard and clears
the rear of the table.
10. Never pull the piece back when the blade is turning.
Turn the switch OFF. When the blade completely
stops, you can then remove the workpiece.
Fig. X
P
U
S
H
M i
cr
o
Adj
us
t
ment
P
U SH
M i
cro
A
d
j
us t
ment
1
3
2
BEVEL RIPPING
This cut is the same as ripping except the blade bevel
angle is set to an angle other than " 0 ".
RIPPING SMALL PIECES
To avoid injury from the blade contact, never make cuts
narrower than 1/2" wide.
1. It is unsafe to rip small pieces. Instead, rip a larger
piece to obtain the size of the desired piece.
2. When a small width is to be ripped and your hand
cannot be safely press between the blade and the
rip fence, use one or more push sticks to move the
workpiece. Always use a push stick during ripping
operations.
