OPERATION
BASIC SAW OPERATIONS

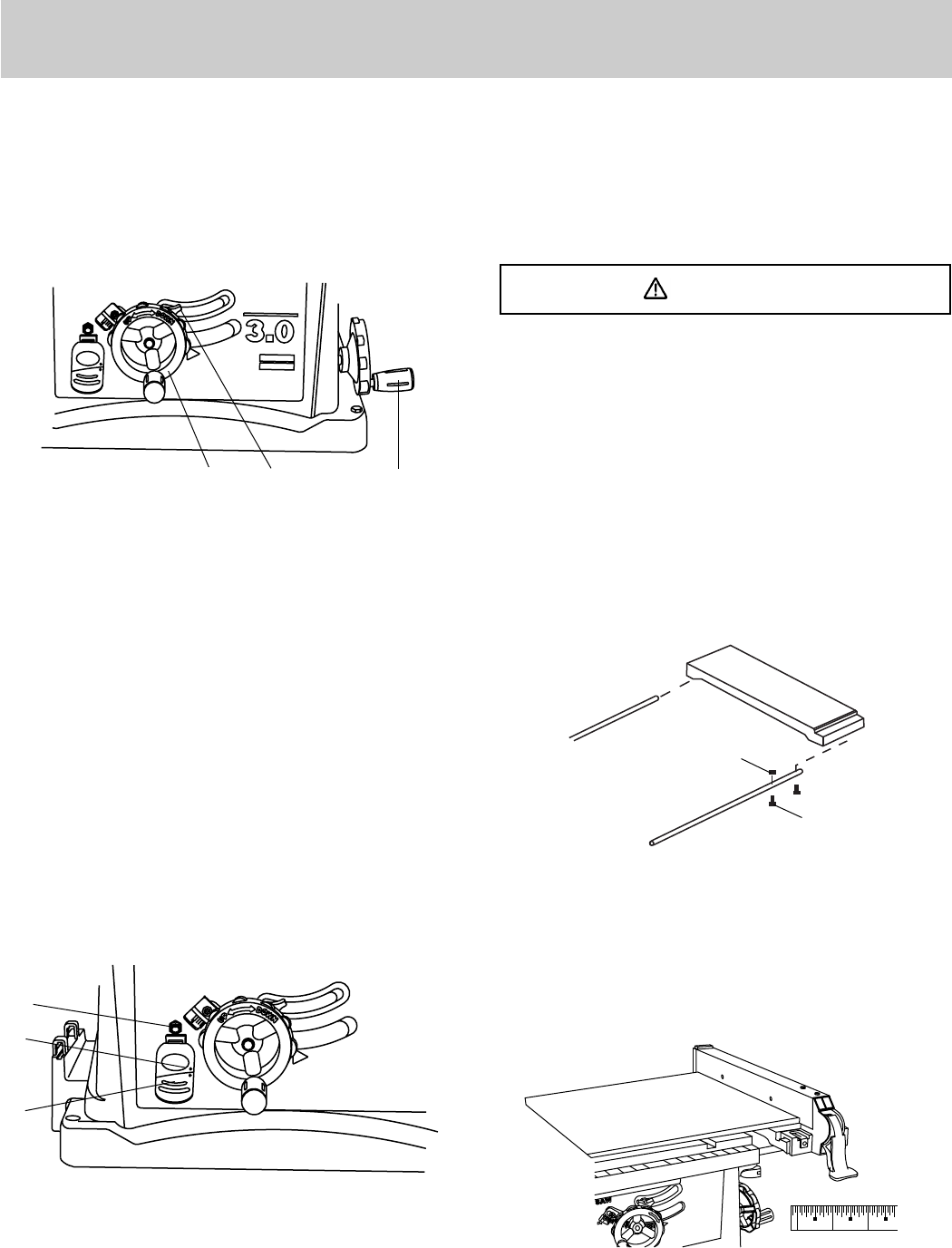

RAISE THE BLADE (Fig. T)
To raise or lower the blade, turn the blade elevation
handwheel (1) to the desired blade height, and then
tighten lock handle (2) to maintain the desired blade
angle.
Fig. T
12
3
TILTING THE BLADE (Fig. T)
1. To tilt the saw blade for bevel cutting, loosen the lock
knob (2) and turn the tilting handwheel (3).
2. Tighten the lock knobs (2) to secure.
ON/OFF SWITCH (Fig. U)
The ON / OFF switch has a removal key. With the key
removed from the switch, unauthorized and hazardous
use by children and others is minimized.
1. To turn the saw ON, insert key (1) into the slot in the
switch (2). Move the switch upward to the ON
position.
2. To turn the saw OFF, move the switch downward.
3. To lock the switch in the OFF position, grasp the end
(or yellow part) of the switch toggle (1), and pull it out.
4. With the switch key removed, the switch will not
operate.
5. If the switch key is removed while the saw is running,
it can be turned OFF but cannot be restarted without
inserting the switch key (1).
Fig. U
3
2
1
OVERLOAD PROTECTION (Fig. U)
This saw has an overload relay button (3) that resets the
motor after it shuts off due to overloading or low voltage.
If the motor stops during operation, turn the ON / OFF
switch to the OFF position. Wait about five minutes for the
motor to cool. Push in on the reset button (3) and turn the
switch to the ON position.
WARNING
To avoid injury, the ON / OFF switch should be in the OFF
position and the plug removed from the power source
while the cool down takes place, to prevent accidental
starting when the reset button is pushed. Overheating
may be caused by misaligned parts or a dull blade.
Inspect your saw for proper setup before using it again.
USING THE TABLE EXTENSION (Fig. V, V-1)
If the table extension is not parallel with the table.
Remove the bolts (1) and position the parallel washers (2)
between the table extension and tube until it is parallel
with the table, then tighten the bolts.
NOTE: Parallel washer (2) see page 7 for table of loose
parts ITEM: Q.
Fig. V
2
1
NOTE: Move and lock the fence to the 15" left or right side
scale. The fence is now clear of the table.
1. Release the extension lock handles.
2. Slide the extension out until the correct measurement
is displayed on the tube scale. The user sights the
scale off the edge of the table.
3. Tighten all extension lock handles.
Fig. V-1
P
U
O
D
N
W
14 15 1 6
Right side scale of table extension
