ACCESSORIES AND ATTACHMENTS
RECOMMENDED ACCESSORIES
WARNING
Visit your Hardware Department or see the Power and
Hand Tools Catalog to purchase recommended
accessories for this power tool

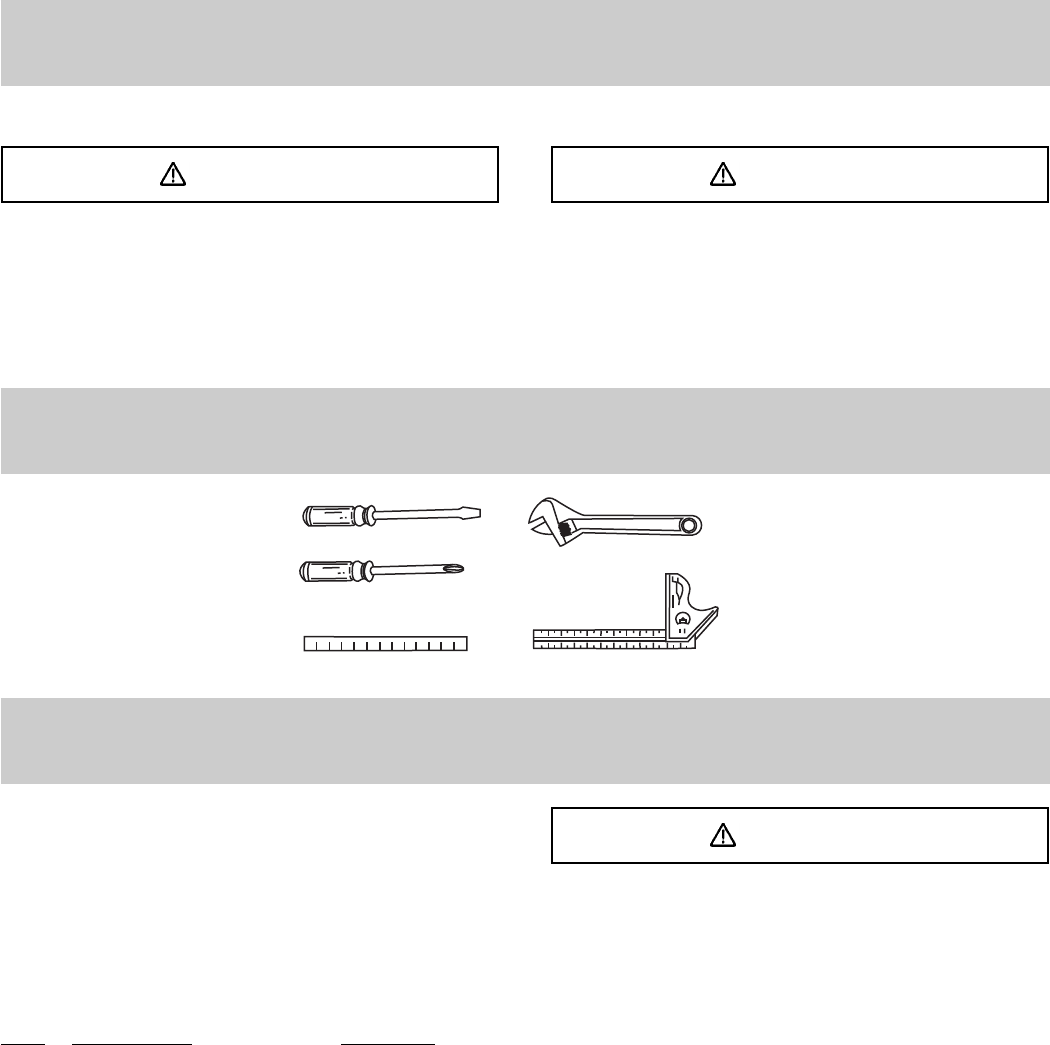

TOOLS NEEDED FOR ASSEMBLY
TOOLS NEEDED
Medium screwdriver
#2 Philips screwdriver
Straight edge
Adjustable wrench
Combination square
CARTON CONTENTS
UNPACKING AND CHECKING CONTENTS
Separate all parts from packing materials. Check each part
with the illustration on the next page and the "Table of
Loose Parts" to make certain all items are accounted for,
before discarding any packing material.
STAND:
Q. Stand assembly 1
R. Hex. head bolts 4
S. Flat washers 4
T. Roller wheels 2
U. Square neck bolts 2
V. Nuts 2
W. Support rod 1
X. Batteries 2
WARNING
If any part is missing or damaged, do not attempt to
assemble the table saw, plug in the power cord, or turn
the switch ON until the missing or damaged part is
obtained and is installed correctly.
TABLE OF LOOSE PARTS
ITEM DESCRIPTION QUANTITY
A. Table saw assembly 1
B. Blade 1
C. Blade wrenches 2
D. Miter gauge 1
E. Hex key 1
F. Bolt, flat washer, toothed washer, 1 each
Oval washer, spring washer
G. Blade guard and splitter 1
H. Rip fence 1
I. Rear table extension 1
J. Rear table extension tube 2
K. Location seat 4
L. Dome nuts 2
M. Hand wheels 2
N. Table extension 1
O. Dust collect elbow 1
P. Parallel washer hardware 1 each
NOTE: To make assembly easier, keep contents of box
together. Apply a coat of automobile wax to the table.
Wipe all parts thoroughly with a clean dry cloth. This will
reduce friction when pushing the workpiece. To avoid
injury, the styrofoam block should be removed between
the motor and the table.
WARNING
To avoid the risk of personal injury:
Do not use adjustable (wobble) type dadoes or carbide
tipped dado blades; maximum dado width is 1/2" .
Do not use a dado with a diameter larger than 6" .
Do not use molding head set with this saw.
Do not modify this power tool or use accessories not
recommended by Store.
