10

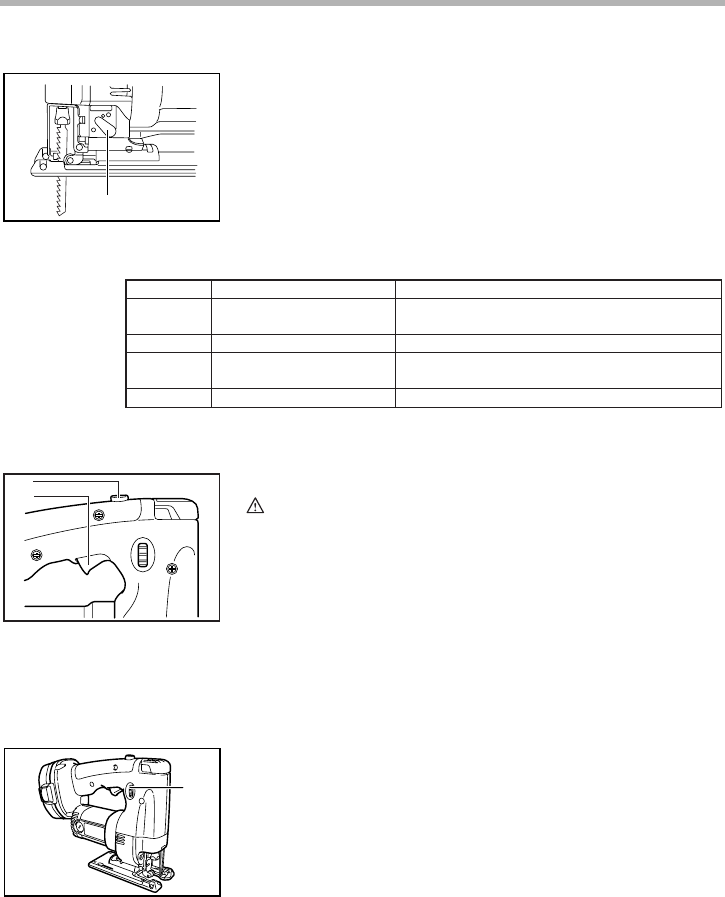

Selecting the cutting action
This tool can be operated with an orbital or a straight line (up
and down) cutting action. The orbital cutting action thrusts
the blade forward on the cutting stroke and greatly increases
cutting speed.
To change the cutting action, just turn the cutting action
changing lever to the desired cutting action position. Refer to
the table to select the appropriate cutting action.
Switch action
CAUTION:
• Before inserting the battery cartridge into the tool,
always check to see that the switch trigger actuates
properly and returns to the “OFF” position when
released.
To prevent the switch trigger from being accidentally pulled, a
lock-off button is provided.
To start the tool, depress the lock-off button and pull the
switch trigger. Release the switch trigger to stop.
Speed adjusting dial
The tool speed can be infinitely adjusted between 500 and
2,800 strokes per minute by turning the adjusting dial. Higher
speed is obtained when the dial is turned in the direction of
number 5; lower speed is obtained when it is turned in the
direction of number 1.
Refer to the table to select the proper speed for the work-
piece to be cut. However, the appropriate speed may differ
with the type or thickness of the workpiece. In general, higher
speeds will allow you to cut workpieces faster but the service
life of the blade will be reduced.
1. Cutting action changing lever
1
002706
Position
0
I
II
III
Applications
Cutting action
Straight line cutting action
Small orbit cutting action
Medium orbit cutting action
Large orbit cutting action
For cutting mild steel, stainless steel and plastics.
For clean cuts in wood and plywood.
For cutting mild steel, aluminum and hard wood.
For cutting wood and plywood.
For fast cutting in aluminum and mild steel.
For fast cutting in wood and plywood.
002788
1. Lock-off button
2. Switch trigger
1
2
002709
1. Speed adjusting dial
1
002712
