13
Removal

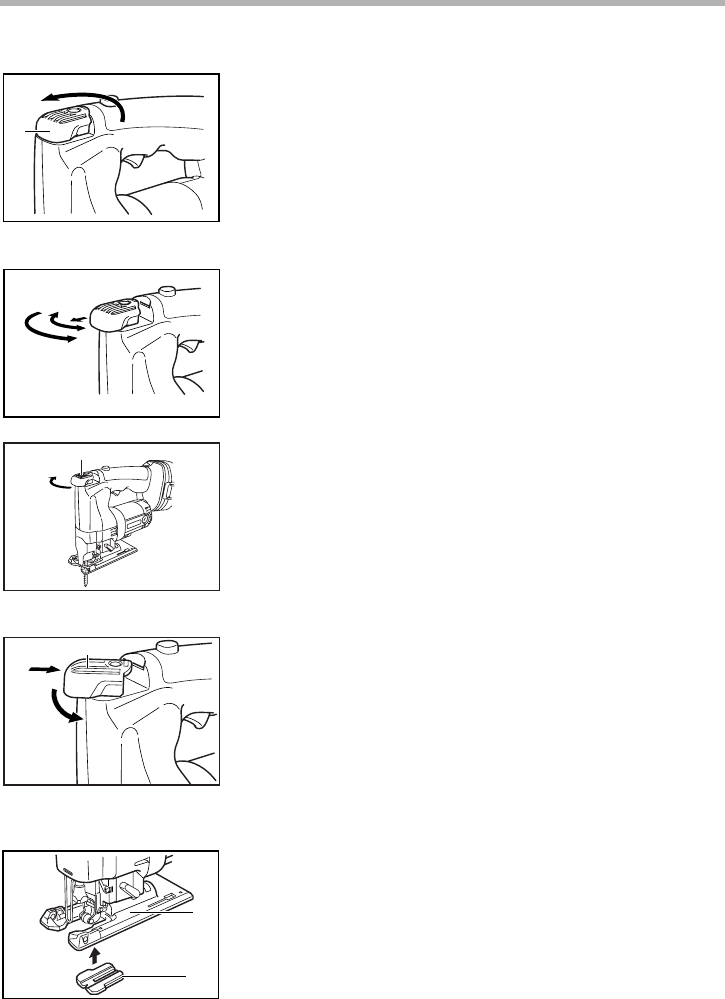

1. Push the blade installing lever in the (1) direction to
release it.
2. Pull the blade installing lever in the (2) direction until it
stops with a little click. If you have difficulty pulling it out,
try to do so while moving it back and forth in the (3)
direction.
3. Rotate the blade installing lever in the (4) direction and
remove the blade.
4. Rotate the blade installing lever in the (5) direction until it
stops.
5. With the blade installing lever held in this position, push
it in the (6) direction. Then rotate the blade installing
lever to its original position.
Anti-splintering device
For splinter-free cuts, the anti-splintering device can be used.
To install the anti-splintering device, move the base all the
way forward and fit it into the base from the back of base.
NOTE:
• The anti-splintering device cannot be used when making
bevel cuts.
1. Blade installing lever
(1)
1
002719
(2)
(3)
(4)
002720
1. Blade installing lever
(5)
1
002724
1. Blade installing lever
(6)
1
002723
1. Base
2. Anti-splintering device
1
2
002734
