2. Pull the blade installing lever in the (2) direction until it
stops with a little click. If you have difficulty pulling it out,
try to do so while moving it back and forth in the (3)
direction.
3. Rotate the blade installing lever in the (4) direction until
the clamp protrudes 5 - 7 mm from the blade holder.
CAUTION:
• If you rotate the blade installing lever excessively, the
clamp will also rotate and finally come off. In this case,
re-install it properly as lately described in ’’Installing
clamp’’.
4. With the blade teeth facing forward, insert the blade into
the blade holder as far as it will go. Make sure that the
back edge of the blade fits properly into the groove of the
roller.
5. With the blade held against the blade holder, rotate the
blade installing lever in the (5) direction until it stops.
6. With the blade installing lever held in this position, push
it in the (6) direction. Then rotate the blade installing
lever to its original position.

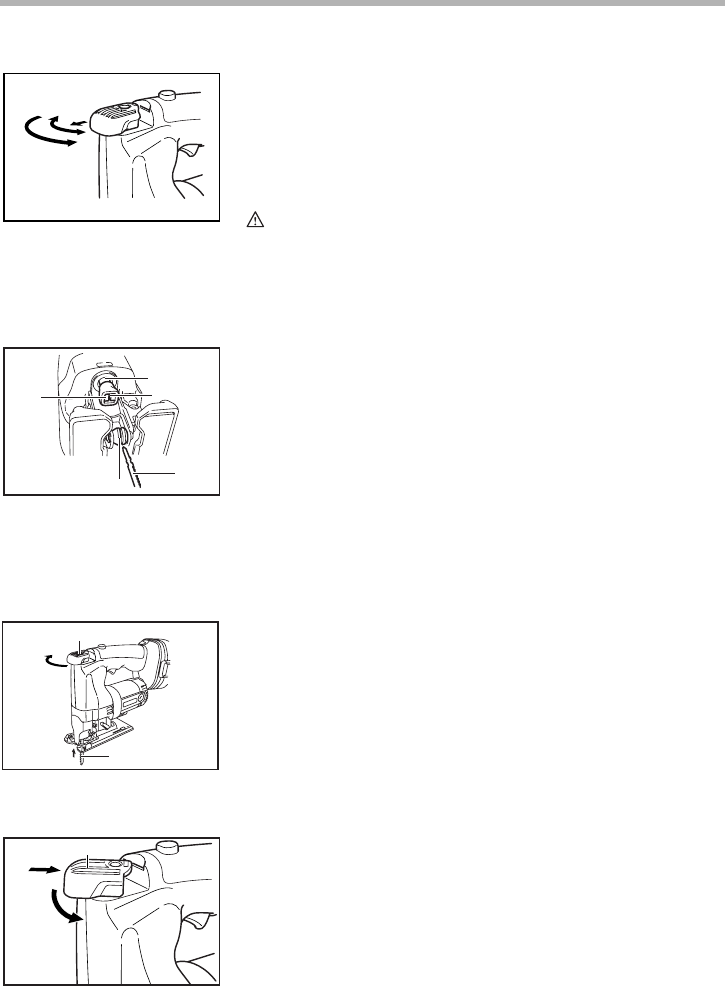

(2)
(3)
(4)
002720
1. Blade holder
2. Clamp
3. Slot
4. Roller
5. Blade
1
2
3
4
5
002721
1. Blade installing lever
2. Blade
1
2
(5)
002722
1. Blade installing lever
(6)
1
002723
