18
Operation
INITIAL PROGRAMMING OF CONSOLE COMPUTER
(CONTINUED)

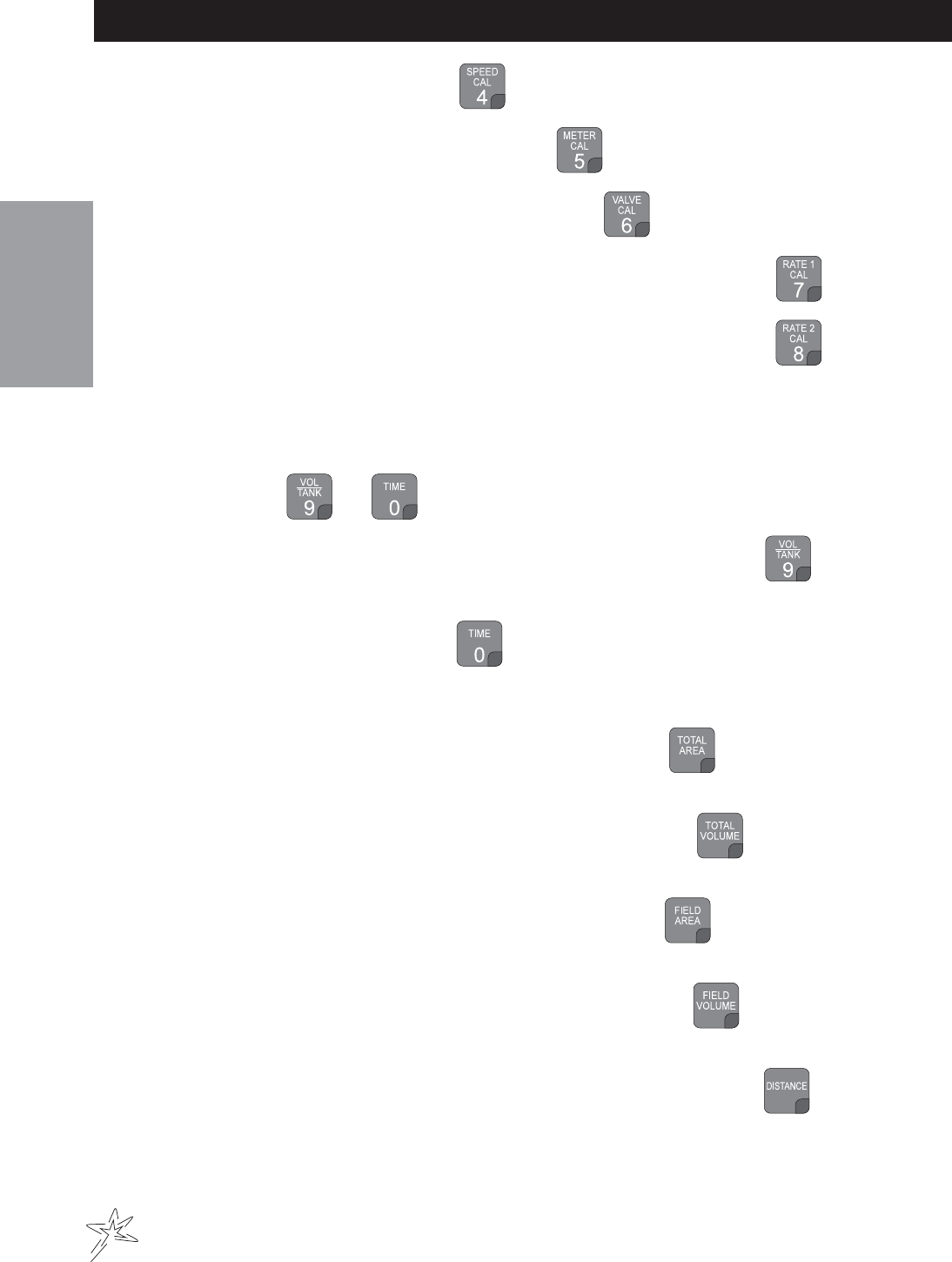

8. Enter SPEED CAL of 612 in key labeled:
9. Enter METER CAL calibration number in key labeled:
10. Enter VALVE CAL calibration number (2123) in key labeled:
11. Enter the target RATE 1 (GPA) (lit/ha) (GPK) you want to spray in the key labeled:
12. Enter the target RATE 2 (GPA) (lit/ha) (GPK) you want to spray in the key labeled: (If you do not
use a second rate, enter same rate as RATE 1 CAL). RATE 2 should not be more than 20% different
from RATE 1 or else spray pattern may suffer.
YOU HAVE NOW COMPLETED PROGRAMMING THE CONSOLE.
The flashing “CAL” will now extinguish. If not, repeat procedure starting at step 5. You may also wish to enter
data in the keys labeled:
and although it is not required for the operation of the system.
13. Enter the estimated total Volume-in-Tank when you start spraying in key labeled: Each time the
tank is refilled, this number must be reentered.
14. Enter the TIME of day in the key labeled: . This is a 24 hour clock. Therefore, all time after 12:59
pm, add 12 hours. Thus, 8:30 am is entered as 8:30, but 1:30 pm is entered as 13:30 in the keyboard.
OTHER DISPLAY FEATURES
1. To display TOTAL AREA covered, momentarily depress key labeled: To “zero out” this total, at any
time, enter a “0” in this key.
2. To display TOTAL VOLUME sprayed, momentarily depress key labeled: To “zero out” this total, at
any time, enter a “0” in this key.
3. To display FIELD AREA covered, momentarily depress key labeled: To “zero out” this total, at any
time, enter a “0” in this key.
4. To display FIELD VOLUME sprayed, momentarily depress key labeled: To “zero out” this total, at
any time enter a “0” in this key.
5. To display DISTANCE (feet (meters) traveled) momentarily depress key labeled: To “zero out” this
total, at any time, enter a “0” in this key.
