– 10 –
1
2
7DK-023
1
2
7DK-024
1
7DK-011

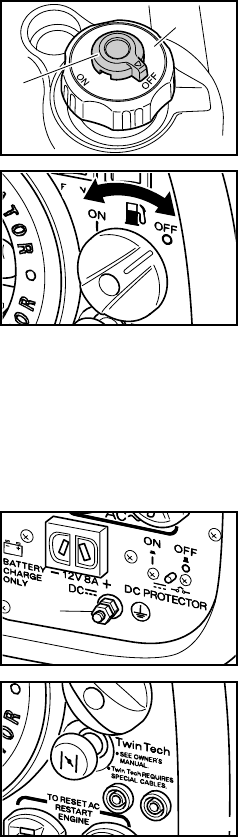

Fuel cock knob
The fuel cock supplies fuel from the fuel tank to the car-
buretor.
The fuel cock has two positions.
1 “ON”
With the knob in this position, fuel flows to the carbure-
tor. Normal using is done with the knob in this position.
2 “OFF”
With the knob in this position, fuel will not flow. Always
turn the knob to this position when the engine is not
running.
Ground (Earth) terminal
Ground (Earth) terminal 1 connects the earth line for
prevention of electric shock.
When the electric device is earthed, always the gener-
ator must be earthed.
7DK-042a
Twin Tech
(Terminal for Connecting special cables for
parallel running)
This is the terminal for connecting special cables for
parallel running of two EF2000iS. The parallel running
requires two EF2000iS and the special cables. (The
rated output in parallel running is 3.0 kVA and the rated
current is 25.0 A.)
The handling, operation procedure and the notes on
usage are described in the PARALLEL RUNNING KIT
OWNER’S MANUAL included in the Parallel Running
Kit. Consult a Yamaha dealer for this Parallel Running
Kit.
Fuel tank cap air vent knob
The fuel tank cap 2 is provided with an air vent knob
1 to stop fuel flow.
The air vent knob must be turned to “ON”. This will
allow fuel to flow to the carburetor and the engine to
run. When the engine is not in use, turn the air vent
knob to “OFF” to stop fuel flow.
7DK-9-10 09.1.27 1:46 PM Page 10
