SKU 47606 For technical questions, please call 1-800-444-3353. Page 5
Assembly
Refer to Figure 1.
1. Fit the Handle Band (508) over the front of the housing above the Bit Sleeve and screw
the Handle (506) clockwise to secure. At this point do not fully tighten.
2. Rotate the Handle (506) around the tool until it rests on a at spot on the housing, on the
side you prefer.
Note: The Drill Stop (504) is used as a guide when doing repetitive drilling (not chiseling) at
the same depth.
3. With the Handle (505) still loose, insert the Drill Stop (504) into the hole at the Handle
base. Fully tighten the Handle (505) clockwise. If you wish to reposition the Handle (505)
or the Drill Stop (504), loosen the Handle (505) by turning it counterclockwise.

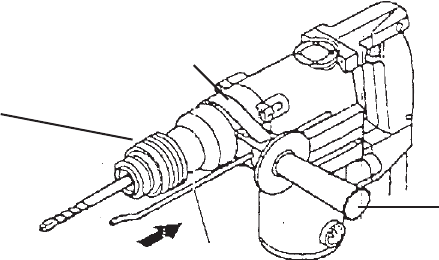

FIGURE 1
Handle (505)
Drill Stop (504)
Bit Sleeve
Handle Band (508)
REV 07j
