OPERATING CONTROLS AND ADJUSTMENTS
STARTING AND STOPPING THE TOOL
The on-off switch (A) Fig. 14 is located on the sander base. To turn the sander “ON”, move the switch to the up position. To
turn the sander “OFF”, move the switch to the down position.
LOCKING SWITCH IN THE “OFF” POSITION
IMPORTANT: When the tool is not in use, the switch should be locked in the “OFF” position to prevent unauthorized use,
using a padlock (A) Fig. 15 with a 3/16" diameter shackle.

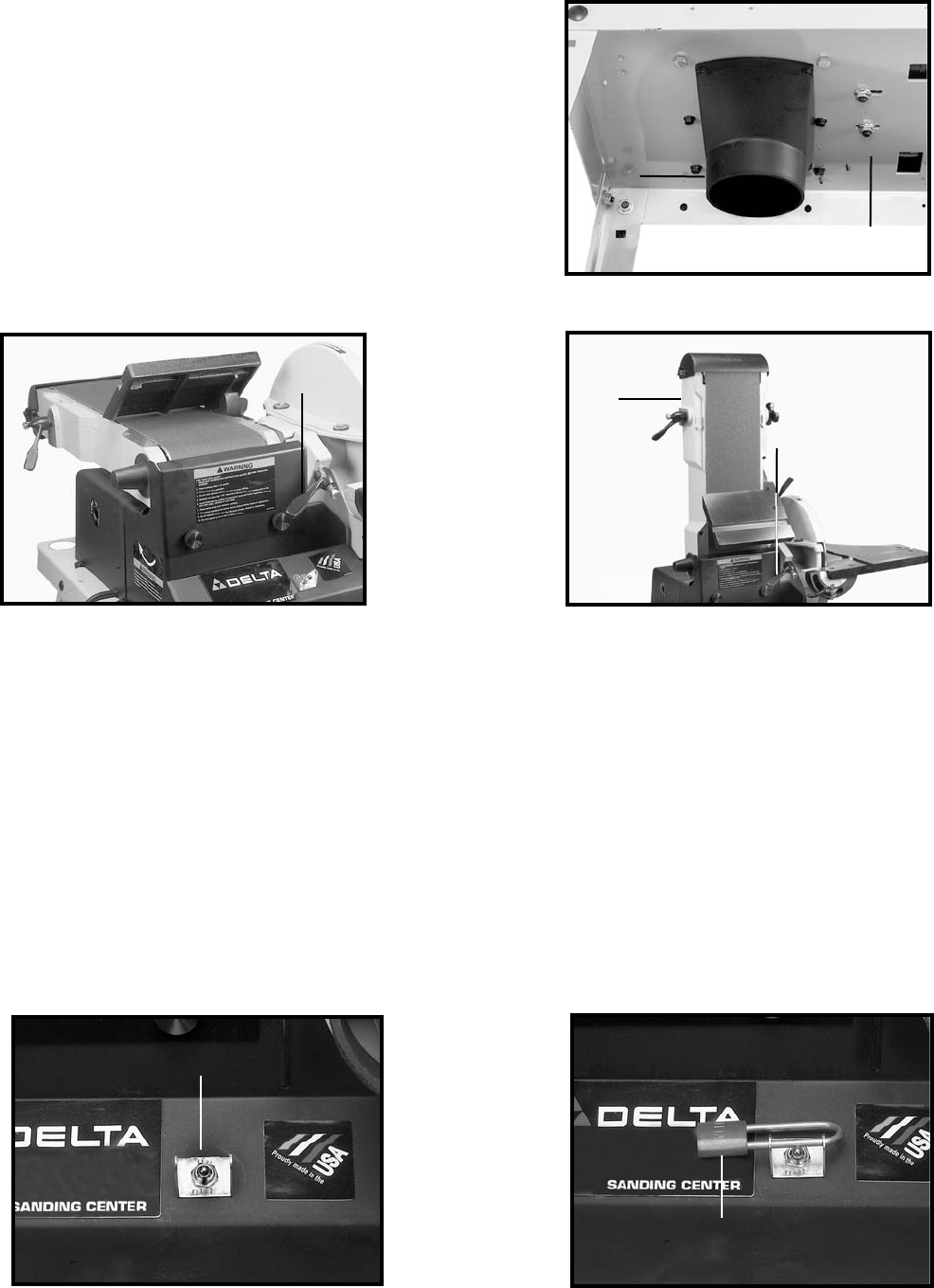

Fig. 14
Fig. 15
MOVING SANDING ARM TO
THE VERTICAL POSITION
The sanding arm is shipped in the horizontal position (Fig.
12). To move the arm to the vertical position:
1. Loosen the lock handle (A) Fig. 12. NOTE: Lock handle
is spring-loaded and can be repositioned by pulling out the
handle, moving it, and letting it spring back into position.
2. Move the sanding arm (B) to the vertical position (Fig.
13) and tighten the lock handle (A).
A
A
Fig. 11
Fig. 12
ATTACHING DUST CHUTE
Attach the dust chute (A) Fig. 11 to the bottom of the top
shelf (B) using the four 5/8" self-tapping screws.
Fig. 13
A
B
A
B
