G0547 Combo Sander -15-

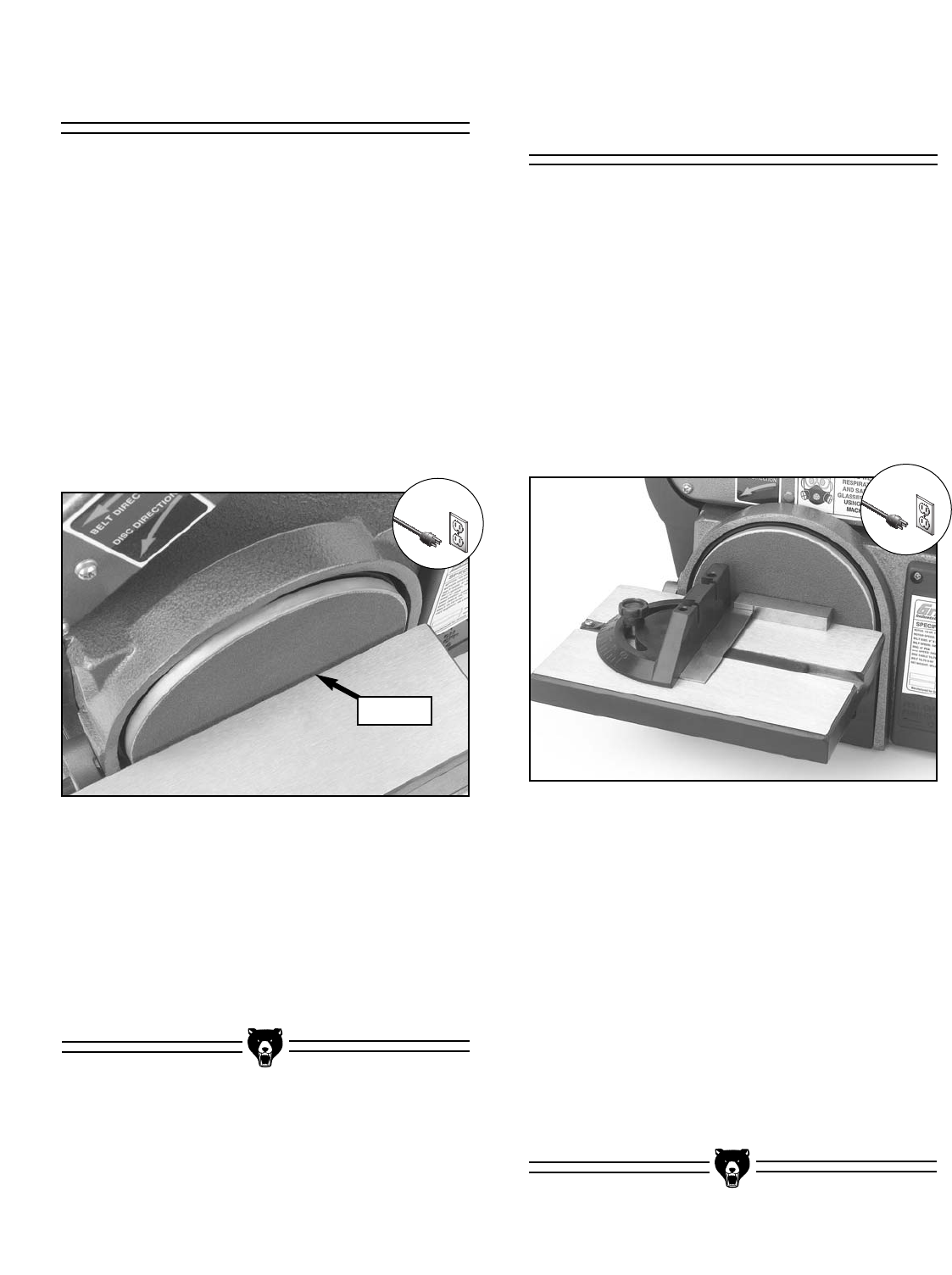

Figure 9. The gap between the table and the disc
The table must be aligned to the face of the sand-
ing disc so that the sandpaper does not rub
against the table.
To align the table:
1. Disconnect the machine from the power
source!
2. Loosen the hex bolts that secure the table to
the table support bracket.
3. Adjust the table so that there is
3
⁄64" or 1 mm
between the table and the sanding disc as
shown in Figure 9.
4. Tighten the screws loosened in step 1.
5. Spin the disc by hand to check if the sand-
paper is touching the table. Note—DO NOT
turn the disc sander on at this point.
6. Repeat steps 1-4 if the sandpaper touches
the table at any point in the rotation.
Adjusting Miter
Gauge
Figure 10. Squaring the miter gauge.
The miter gauge needs to be adjusted perpendic-
ular to the face of the wheel when it is mounted in
the table slot.
To adjust miter gauge:
1. Disconnect the machine from the power
source!
2. Use a machinist square with one edge
against the face of the miter gauge and the
other against the disc face as shown in
Figure 10.
3. Loosen the lock knob on the miter gauge to
adjust it flush with the edge of the square.
4. Tighten the lock knob, and verify the setting.
Note—Sometimes the tightening procedure
can affect the adjustment.
5. Loosen the setscrew that secures the angle
pointer and adjust the pointer to the 0˚ mark
on the scale.
6. Retighten the setscrew that secures the
angle pointer.
Aligning Table
!
!
3
⁄64" Gap
