SKU 95004 For technical questions, please call 1-800-444-3353 PAGE 12
3. Laser Switch (74): The Circular Saw is equipped with a Laser Guide that is
designed to aid alignment of the Saw Blade with the cutting line on the
workpiece. To operate, push the Laser Switch to its “ON” or “OFF” positions.
(See Figure E.)
ASSEMBLY INSTRUCTIONS
To Install A Saw Blade:
1. CAUTION! Always make sure the Power Switch (67) of the Circular Saw is
in its “OFF” position and the tool is unplugged from its electrical outlet prior to
adding any accessories or making adjustments to the tool. (See Figure E.)
2. To avoid accidental cuts to hands and fingers, always wear heavy duty
work gloves when installing Saw Blades (20).

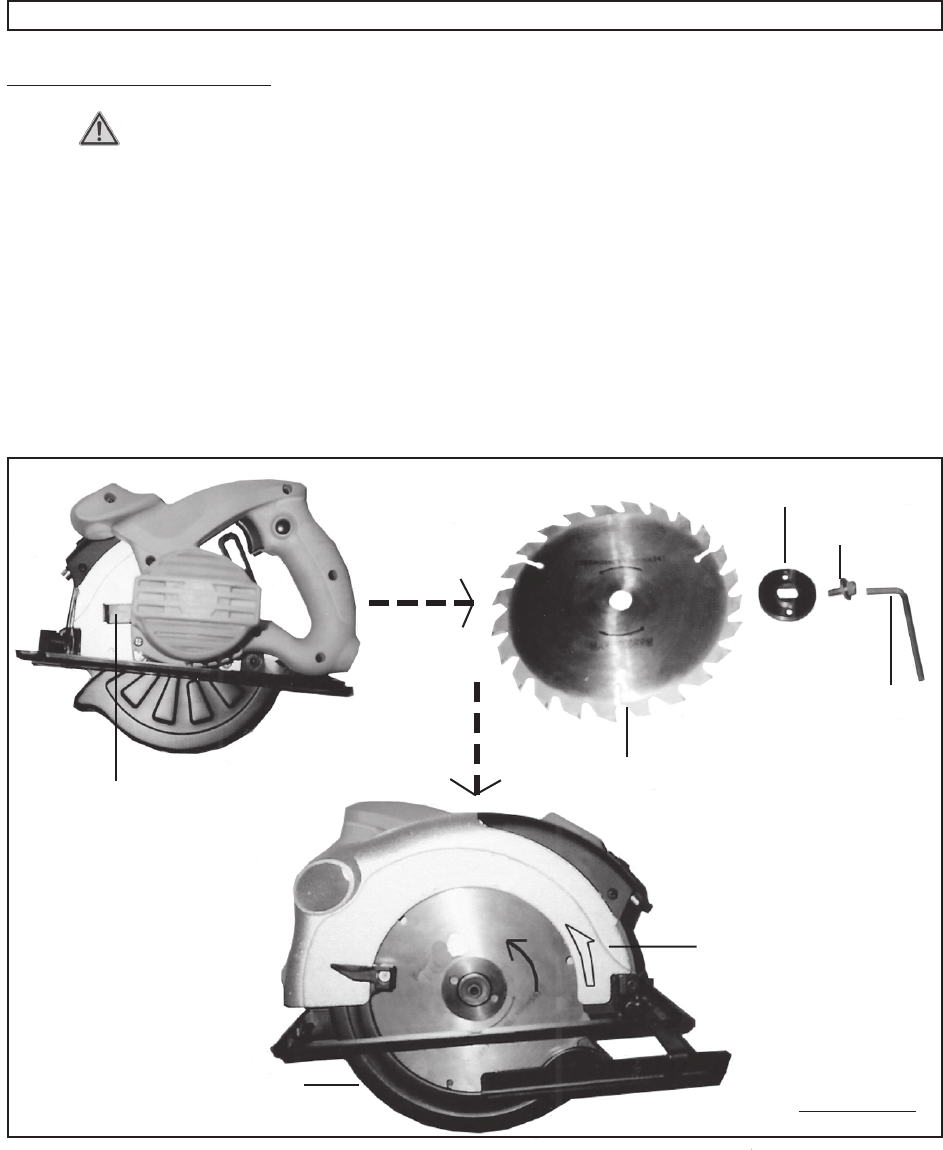

3. IMPORTANT: When installing a Saw Blade (20), make sure the teeth of the
Saw Blade point upward and that the direction of the arrow shown on the Saw
Blade matches the direction of the arrow shown on the Blade Housing (11).
(See Figure F.)
BLADE HOUSING
(11)
FIGURE F
OUTER PLATE
(18)
SCREW
(48)
HEX
WRENCH
(69)
SAW BLADE
(20)
SPINDLE LOCK
(39)
SAFETY COVER
(26)
