SKU 95004 For technical questions, please call 1-800-444-3353 PAGE 13
4. Depress the Spindle Lock (39) to hold the Spindle stationary. (See Figure F.)
5. Use the accessory Hex Wrench (69) to unscrew and remove the Screw (48).
(See Figure F.)
6. Remove the Outer Plate (18). (See Figure F.)
7. Raise up on the Safety Cover (26). Then, install the Saw Blade (20) on the
Spindle of the tool. (See Figure F.)
8. Release the Safety Cover (18), and allow it to return to its original position.
(See Figure F.)
9. Re-install the Outer Plate (18). While depressing the Spindle Lock (39), use the
accessory Hex Wrench (69) to
firmly
re-tighten the Screw (48) back into the
Spindle to secure the Saw Blade (20) in place. (See Figure F.)
To Adjust The Depth Of Cut:
1. The depth of cut may be adusted to a maximum of 2-1/2” at 90 degrees and
1-3/4” at 45 degrees.
2. To adust the depth of cut, raise the Depth Lock (44) to its unlocked position.
Raise the Saw body up from the Base (4), and set the depth of cut using the
Depth Bracket (46) provided. Then, lower the Depth Lock to its locked position.
NOTE: Always add 1/8” to your depth of cut so the Saw Blade (20) can cut
through the material. (See Figure G.)

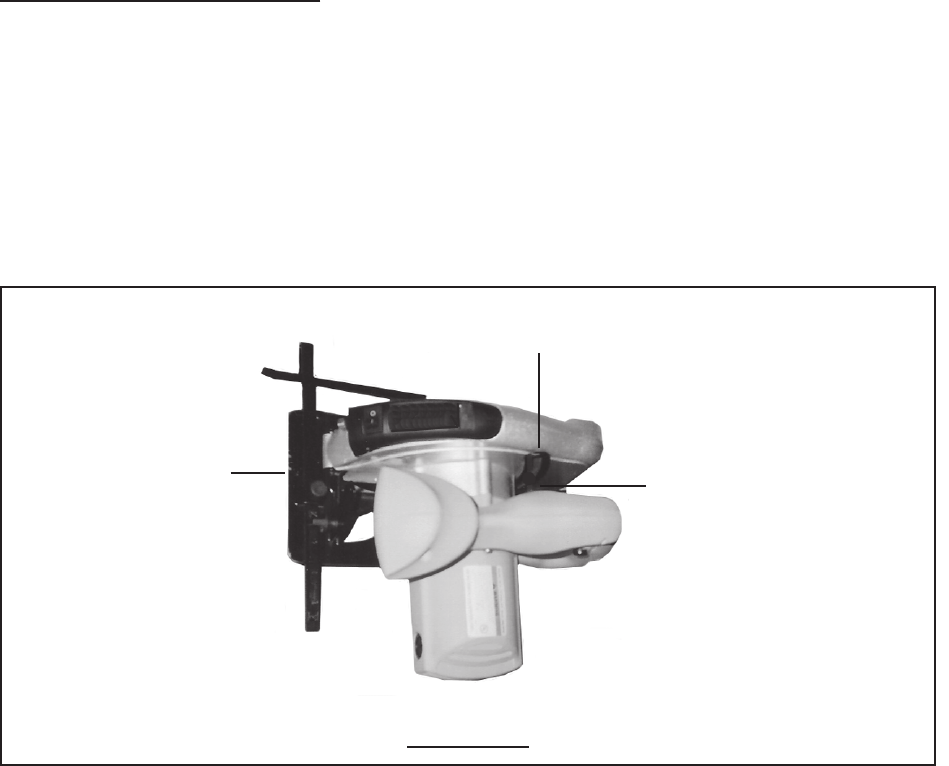

DEPTH LOCK
(44)
DEPTH BRACKET
(46)
BASE
(4)
FIGURE G
