To Adjust The Angle Of Cut:
1. The angle of cut may be adjusted from 90 degrees to 45 degrees.
(See Figure H.)
2. To adjust the angle of cut, loosen the Nut (10). Rotate the Base (4) to set the
angle, using the Scale provided. Then, retighten the Nut to lock the Base in
position. (See Figure H.)
NUT
(10)
SCALE
BASE
(4)

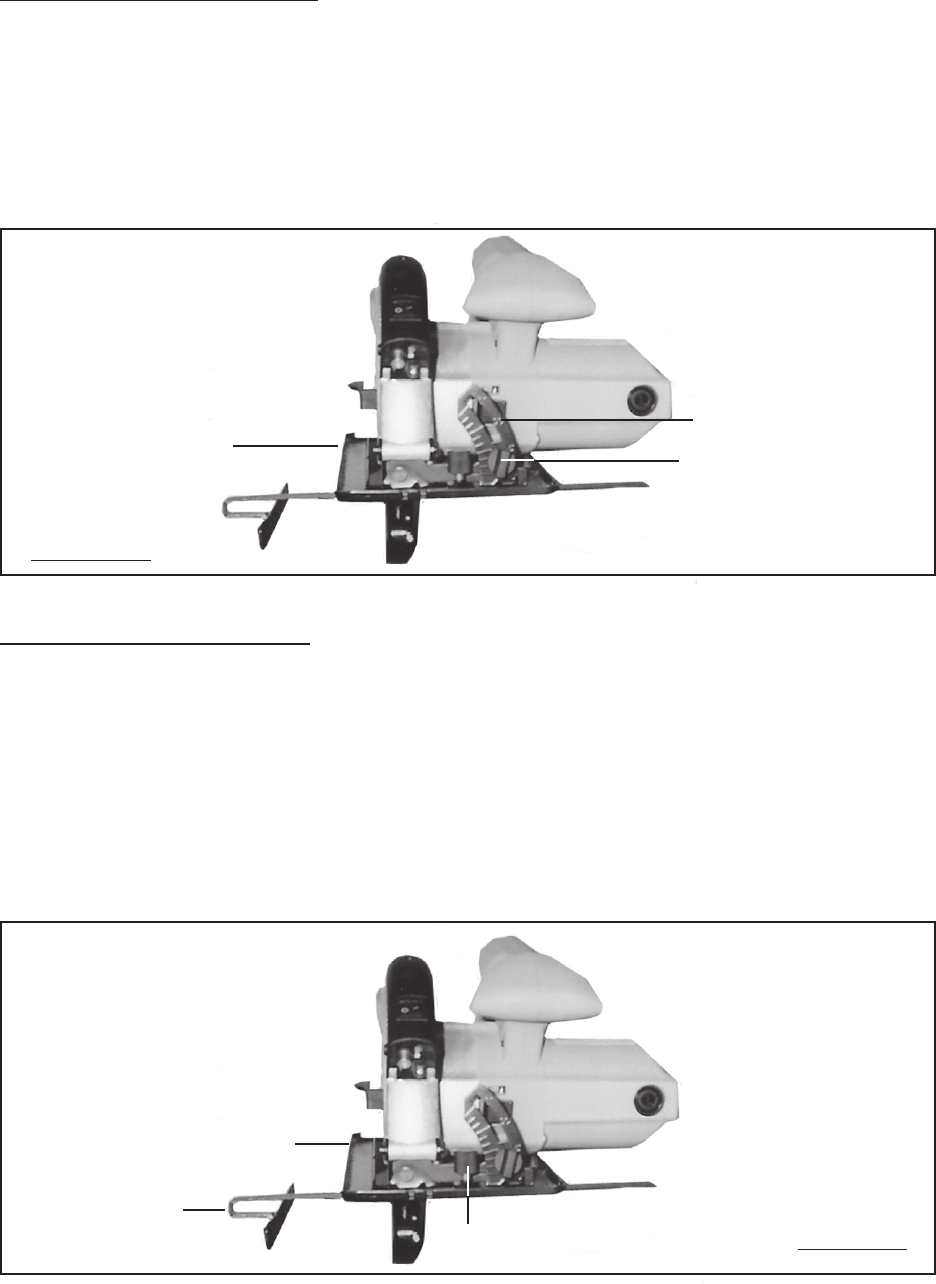

FIGURE H
To Adjust The Guide Ruler:
1. The Guide Ruler (1) is used for making cut parallel to a workpiece edge at a
chosen distance. (See Figure I.)
2. To use the Guide Ruler (1), loosen the Screw (3). Slide the arm of the Guide
Ruler through the openings on each side of the Base (4) and achieve the desired
cutting distance using the Scale. Then, retighten the Screw to lock the Guide
Ruler in position. NOTE: The Guide Ruler can be used from both sides of the
Base. (See Figure I.)
GUIDE RULER
(1)
SCREW
(3)
BASE
(4)
FIGURE I
