Special MENU Features
Menu Functions (Radio controlled)
Press and release button 1attheStandardDisplaytoentertheMENU.
The menu offers always only the features which can be selected depending on the setup (horizontal
or vertical).
The icon of the selected function will be highlighted.
Adownarrowatthetherightsiteindicatesthattheusercanscrolldownthroughthemenuusingthe
button 8 (down arrow).
Aftergoingtothenextmenurow,anup/downarrowatthetherightsiteindicatesthattheusercanscrollup/
down through the menu (4 different screens) using the buttons 5/8(up/downarrows).
Pressing and releasing button 3 changes the unit always back to the standard or previous display.
Press and release the buttons 6/7 until the desired icon at the selected menu row is highlighted.
Press and release button 4
toopenthesubmenuORstarttheselectedfunction.

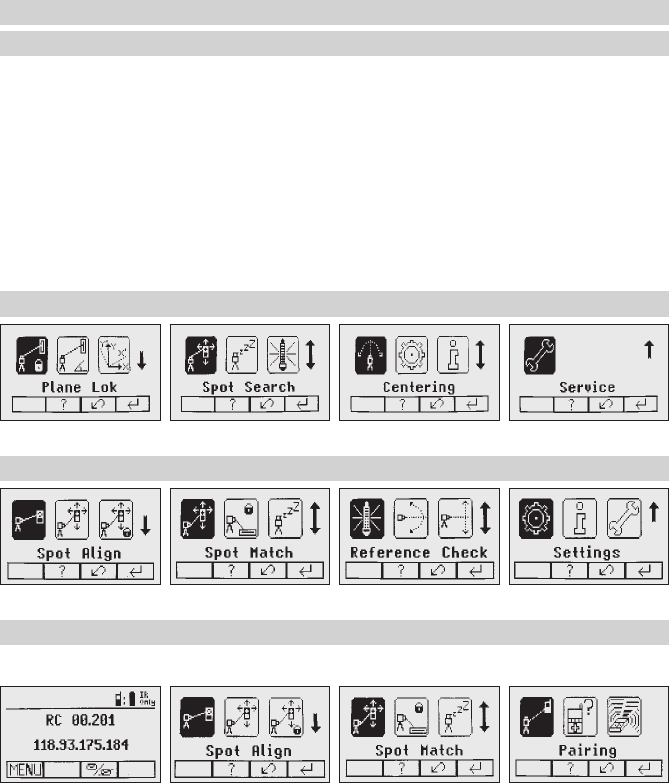

Menu functions when set up horizontal
Menu functions when set up vertical
Menu Functions (IR controlled)
IftheRC603ispairedwithatransmitterandtheradioconnectiondoesn’twork,e.g.,throughapipe,theIR
connection offers the following functions.
PressandreleasetheMENUbuttonattheStandardDisplay.
Pressing and releasing button 3 changes the unit always back to the standard or previous display.
Press and release the buttons 5 to 8 until the desired icon is highlighted.
Press and release button 4
toopenthesubmenuORstarttheselectedfunction.
Note: Pairing function is needed to pair an already paired remote with a new transmitter.
The new transmitter has to be set to the pairing dialog for this operation. Otherwise the pairing can not be
successful processed.
The pairing information of the previous pairing is still stored in the previous paired transmitter and should be
deleted in the pairing dialog of this transmitter
Note
:IfaremoteispairedwithatransmittertheIRsignalsoftheremote(incaseofaninterruptedradio
connection) will transmitted in a private modesothatonlythepairedtransmittercanreceivedtheseIR
commands.
