Onboard Status Panel
This section describes the parts of the onboard status panel of the XC Series.

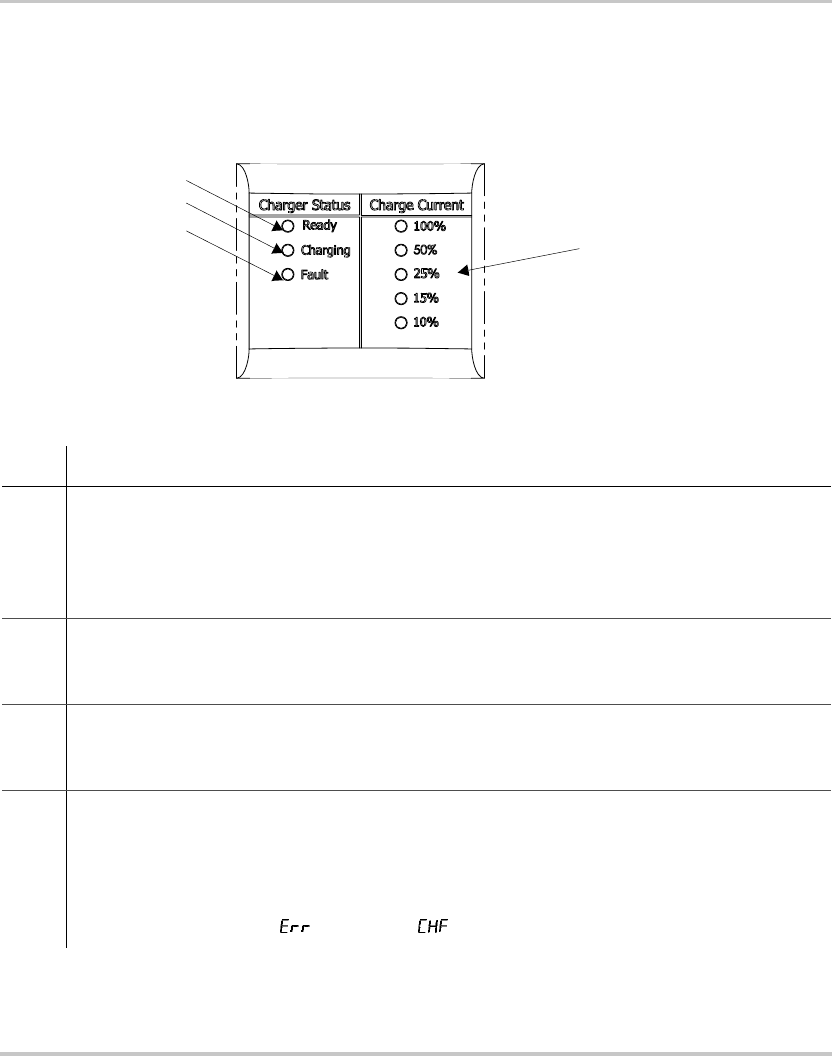

Figure 1-3 shows the panel.
Figure 1-3
XC Series Onboard Status Panel
Item Description
1 Charge Current
• Displays the output charge current in % of charger maximum for the bank being charged
• 100% indicator light flashes to indicate battery temperature too high (> 50 °C, 122 °F)
• 10% indicator light flashes to indicate battery temperature too low (< 0 °C, 32 °F)
• 25% indicator light flashes to indicate that a battery has been disqualified (see page 3–4)
2
Charger Status -
READY
• Ready indicator light illuminated indicates all batteries are fully charged, and are now in
float or rest
3
Charger Status -
CHARGING
• Charging indicator light illuminated indicates unit is performing a normal charge cycle
• Charging indicator light flashing indicates that the unit is performing an equalization cycle
4
Charger Status -
FAULT
• Fault indicator light continuously illuminated indicates any fault condition that prevents
the XC Series from charging one or more batteries, but is not a charger failure - remote
display shows details of fault
• Fault indicator light flashing indicates the XC Series has experienced a charger failure -
remote display shows
followed by
1
2
3
4
