Diagrams
WIRING DIAGRAM PARTS LIST
REF# PART# DESCRIPTION QUANTITIY
1 50-359 Oil Pressure Warning Indicator Light 1
2 22-003 Ammeter 1
3 76-269 Power Wire to Hour Meter
4 13-288 Key Switch with Hardware 1
76-310 Key Set 1
5 34-146 Panel Mount Circuit Breaker 1
34-145 Circuit Breaker Boot 1
6 12-017 Hour Meter 1
7 76-259 Ground Wire for Hour Meter 1
8 76-260 Ground Wire for Ignition Switch 1
9 Ignition Module (Part of Engine)
10 Fuel Shut-Off Solenoid (Part of Engine)
11 Plug-In Connector (Wire Harness & Engine Wire Harness)
12 Rectifier (Part of Engine)
13 Oil Sender (Part of Engine)
14 42-113 Cranking Relay (Part Of Engine)(Kohler #25 435 02)
15 Starter (Part of Engine)
16 48-157 Red Battery Cable 1
8892-21 Hose Wrap 1
17 22-073 Battery 1
48-166 Battery Holddown 2
18 48-147 Black Battery Cable 1
19 14-272 Seat Switch 1
20 8975 30 Amp Curcuit Breaker 1
8977 Circuit Breaker Boot 1
21 48-144 Circuit Breaker Wire 1
22 15-314 Toggle Switch 1
15-472 Boot 1
23 78-368 Electric Clutch 1
* 76-325 Wire Harness (Includes all wire colors with *) 1

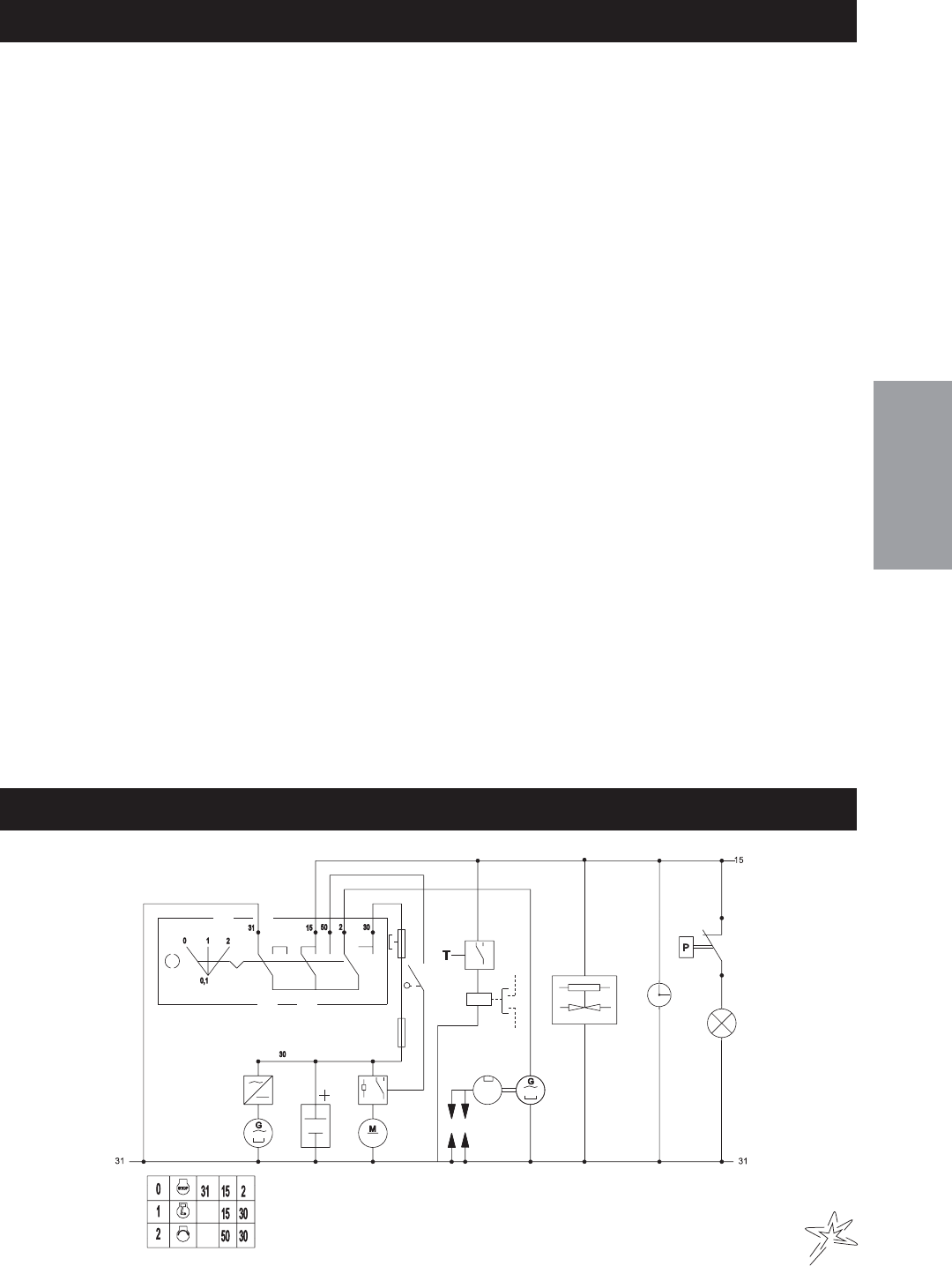

WIRING SCHEMATIC
