Commissioning
Alcatel Vacuum Technology France - ACT 250 addendum
10
January 2001

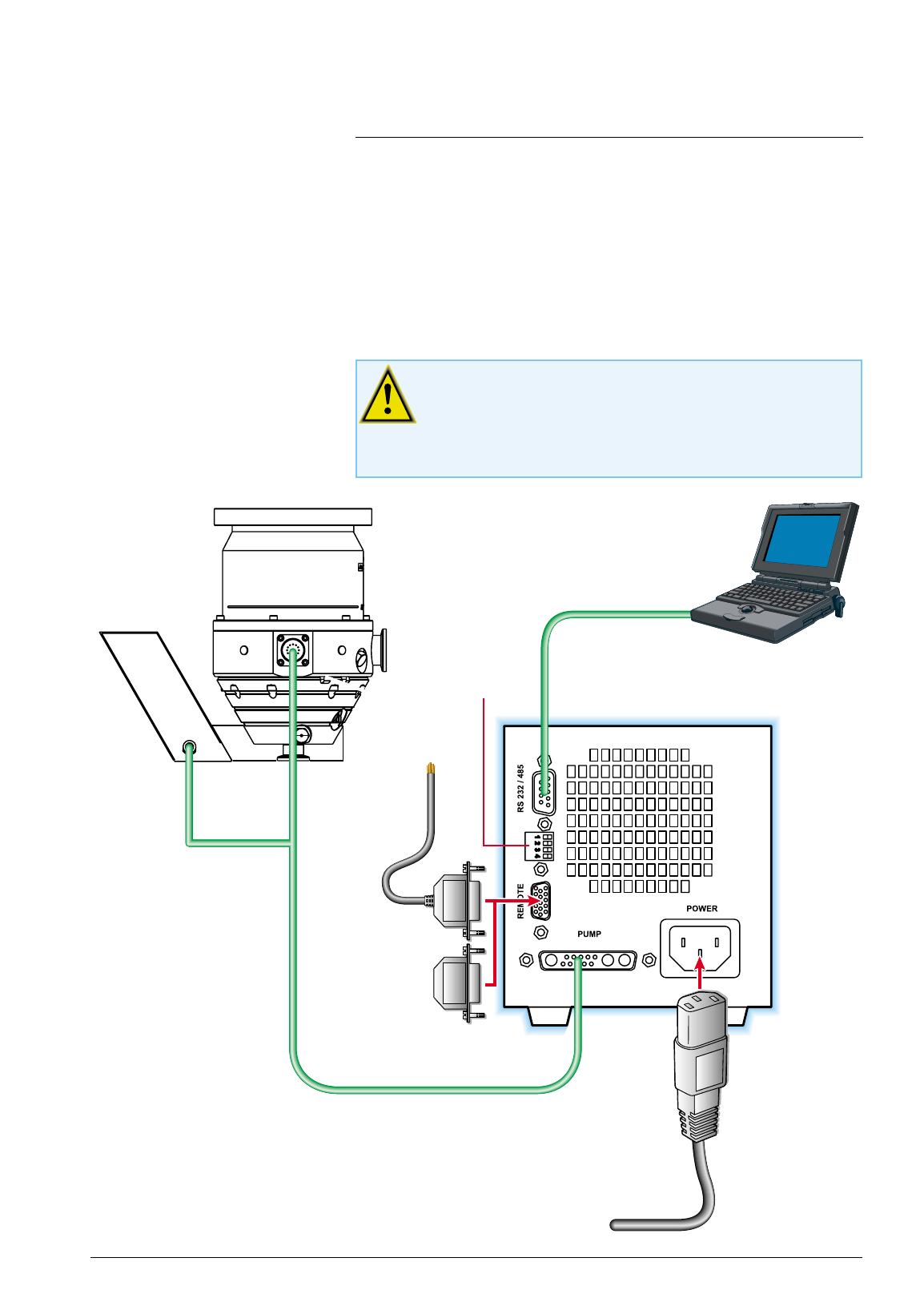

ACT 250 controller
electrical connections
Connect the RS232/485 serial link
cable to the connector (cable and PC
supplied by customer)
■ If the controller is remote controlled, make the various
connections on the REMOTE connector (see page 13 for
wiring details).
■ If the controller is used in local mode, the
pump can only operate if the connector plug
(ordered separately) is connected to the REMOTE
connector (see page 13 for wiring details).
Connect the controller to
the pump using the cable
(ordered separately)
Connect the
fan
(air-cooled
ATP)
Remote cable
or
Connector plug
(standard
wiring) to use
the unit in local
mode.
ATP 150
or ATP 400
pump
PC
Connect the controller to the mains
(cable ordered separately).
An earth connection must be provided.
RS configuration
