Operating and Safety Instructions
18

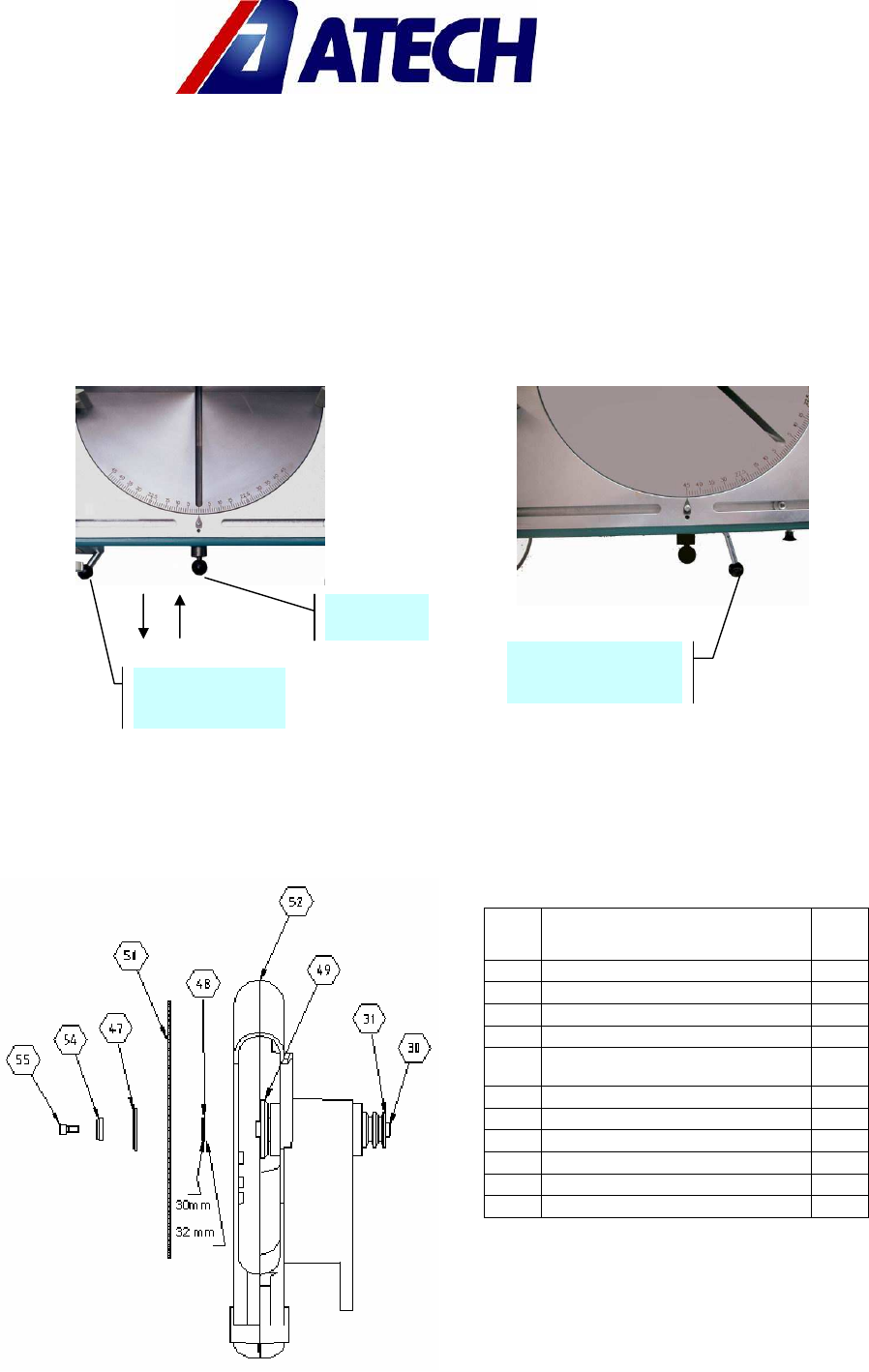

7.2. MITER CUT:
7.2.1
. Press the saw blade down until it touches the cutting slot of the table.
7.2.2
. Pull out the snap pin from its slot. (See Illustration 4)
7.2.3.
Pull the table locking Bar to the left to unlock. (See Illustration 4)
7.2.3.
Adjust the desired angle by turning the cutting head to the right or left. (See
Illustration 5)
7.2.4.
The cutting angles 15°-22.5°-30°-45° are fixed by releasing the snap. Pull the table
locking handle to the right and fix the table (See Illustration 5)
Illustration 4 Illu
stration 5
7.2.5.
At intermediate angles (5°-10°-15°-35°-40° …) lock the table by pulling the table
locking handle to the right.
Table Locking
Handle (Locked)
Snap Pin
Table Locking
Handle(Unlocked)
No Stock No / Part Name Qty
30
141-112 BLADE SHAFT 1
31
112-019 BLADE SHAFT PULLEY 1
47
141-094 OUTER NUT WASHER 1
48
141-092 BLADE WASHER 1
49
114-018 BLADE INNER NUT
WASHER
1
50
201-003 350 mm SAW BLADE 1
50
201-004 400 mm SAW BLADE 1
52
111-166 PEGASUS HEAD 1
52
111-243 SKAT I HEAD 1
54
141-093 WASHER 30x8x7 1
55
172-025 M8x16 HEXAG. SCREW 1
