9. Simply push back into place (Fig. 39).
10. Locate driver block assembly replacement.
NOTE: Ribbed side of assembly should
face down (Fig. 40).
11. Locate and reattach guide sleeves to lower
portion of driver block assembly (Fig. 41).
12. To ensure proper alignment of rubber
cords, guide sleeves must be properly
installed. See Figure 42 for correct
orientation.
13. Hold guide sleeves and rear tabs securely
t
o driver block assembly with one hand
while holding frame with guide rails in the
other hand. Insert guide rails into holes in
guide sleeves (Fig. 43).
14. Replace rubber cords. Align rubber cords
with tabs on the back of the frame first
(Fig. 44).

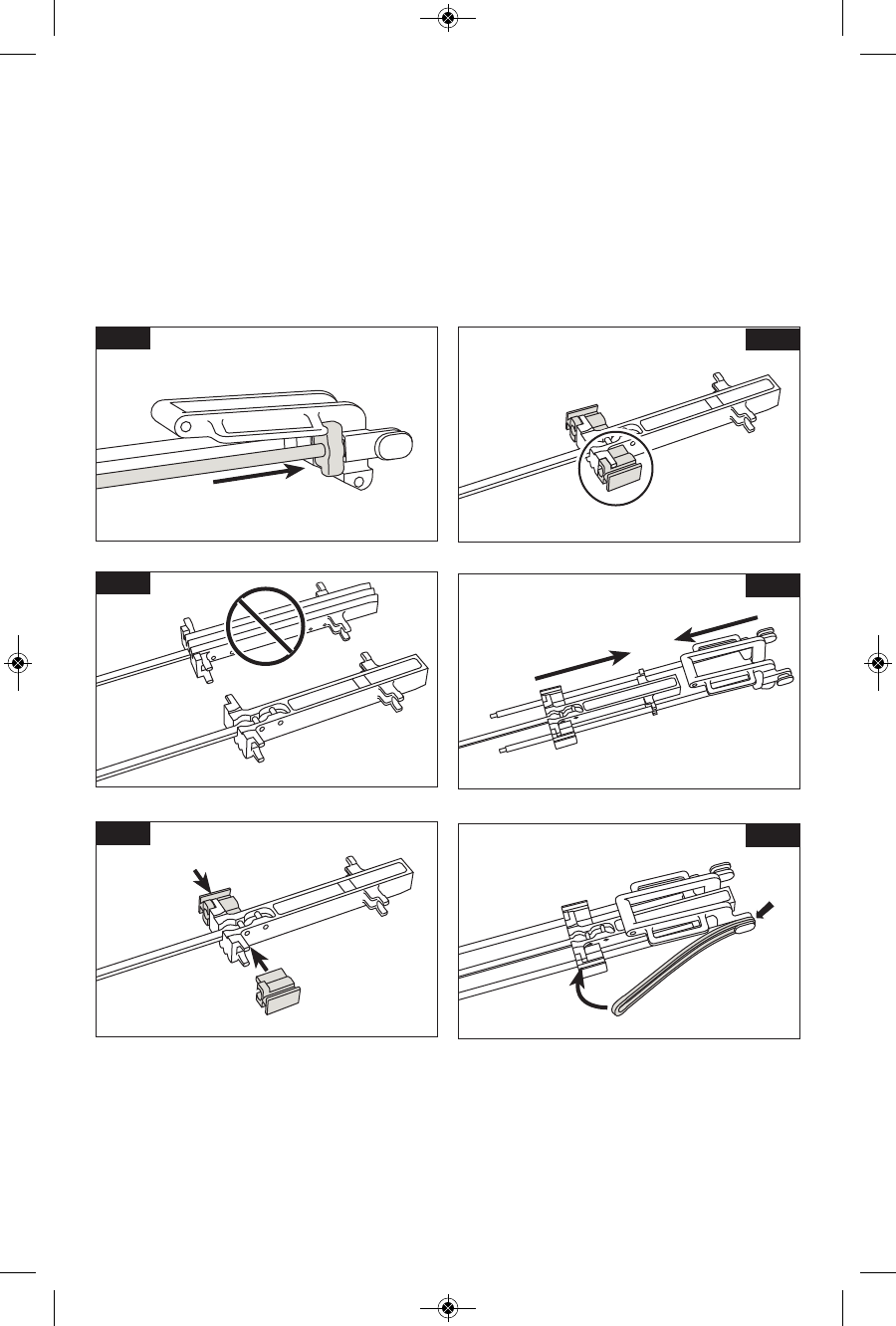

FIG. 39
FIG. 40
FIG. 41
FIG. 42
FIG. 43
FIG. 44
