12
Fig. 22
Fig. 21
ADJUSTMENTS
ADJUSTING 90 AND 45
DEGREE BEVEL STOPS
1. DISCONNECT THE SAW FROM THE POWER
SOURCE.
2. Loosen bevel lock handle and tilt the cutting arm all
the way to the right and tighten the bevel lock handle.

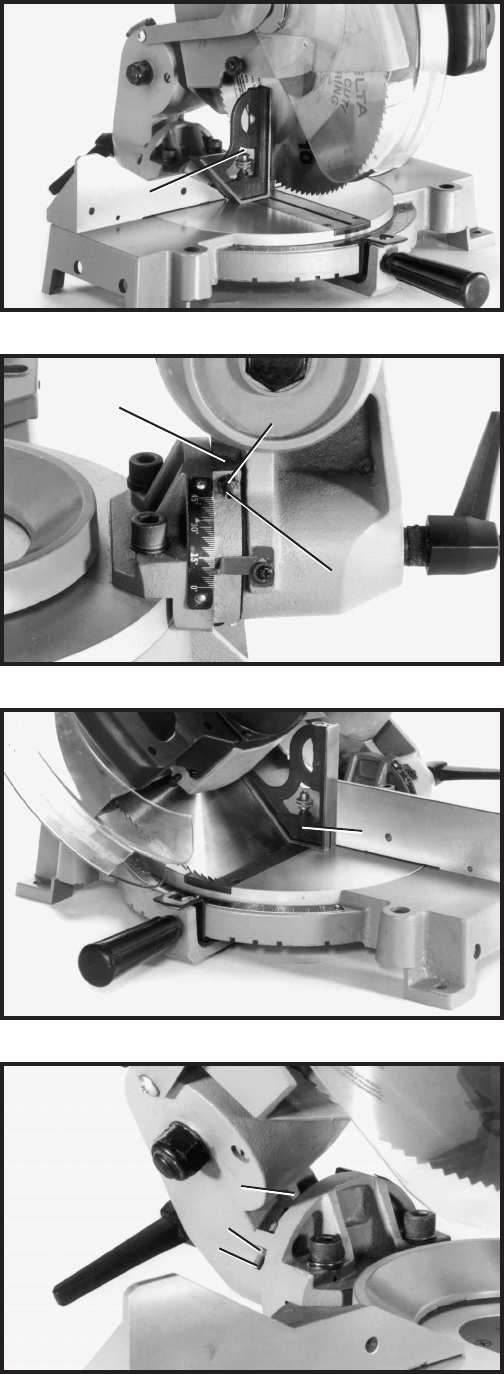

3. Using a square (A) Fig. 21, place one end of the
square on the table and the other end against the blade.
Check to see if the blade is at 90 degrees to the table, as
shown in Fig. 21.
4. If an adjustment is necessary, loosen locknut (B)
Fig. 22, and turn screw (C) until other end of screw (C)
contacts casting (D) when blade is 90 degrees to the
table. Then tighten locknut (B).
5. Loosen bevel lock handle and tilt the cutting arm all
the way to the left bevel position and tighten bevel lock
handle.
6. Using a combination square (A) Fig. 23, check to see
if the blade is at 45 degrees to the table, as shown.
7. If an adjustment is necessary, loosen locknut (E)
Fig. 24, and turn screw (F) until other end of screw (F)
contacts casting (G) when blade is 45 degrees to the
table. Then tighten locknut (E).
8. These positive stops enable you to rapidly position
the blade at 90 and 45 degrees to the table.
Fig. 23
Fig. 24
A
A
G
E
F
D
B
C
