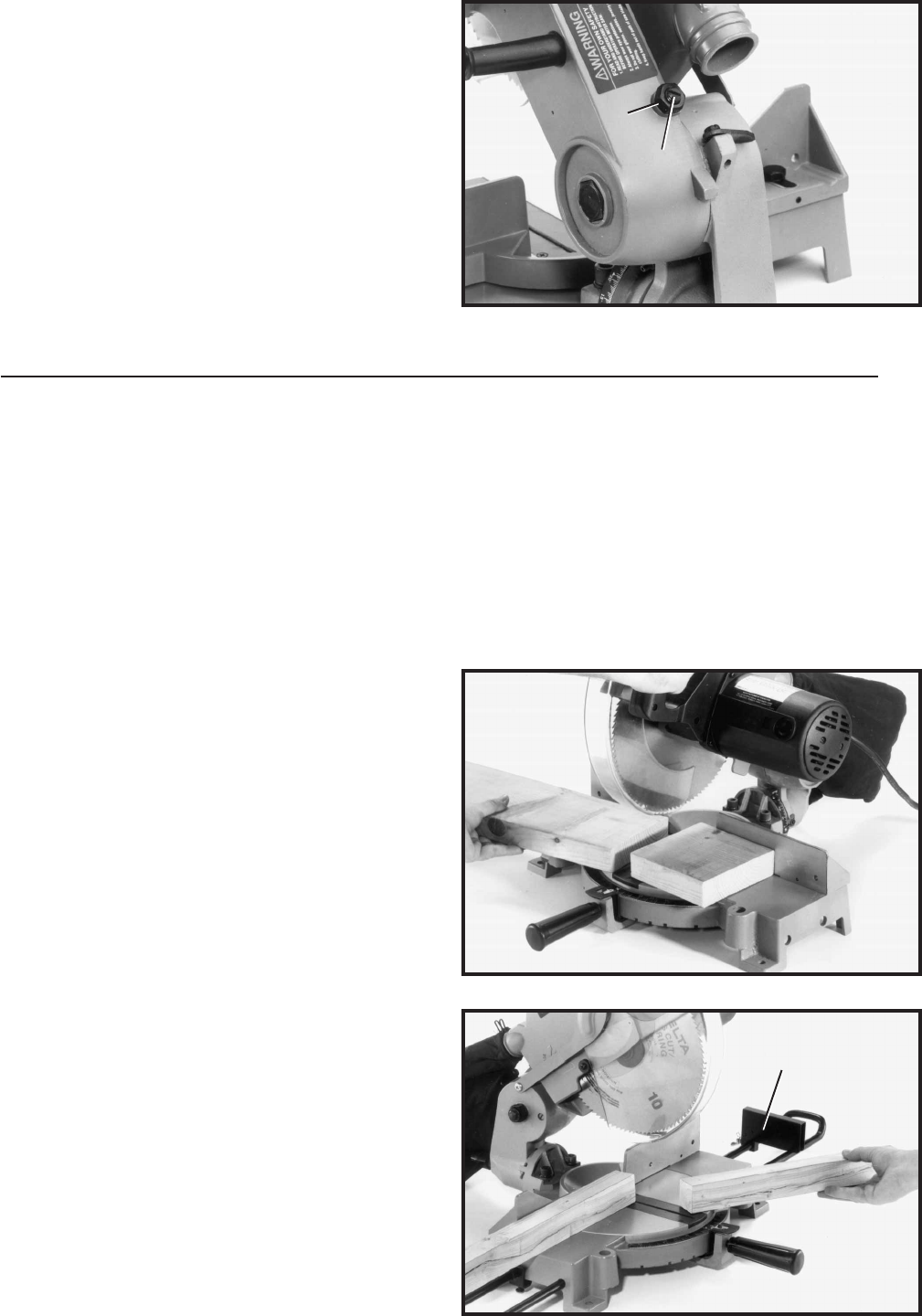

ADJUSTING DOWNWARD
TRAVEL OF SAW BLADE
1. DISCONNECT THE SAW FROM THE POWER
SOURCE.
2. The downward travel of the saw blade can be limited
to prevent the saw blade from contacting any metal sur-
faces of the machine. This adjustment is made by loos-
ening locknut (A) Fig. 31, and turning adjusting screw (B)
in or out.
3. When making this adjustment, make sure the
machine is disconnected from the power source and
lower the blade as far as possible. Rotate the blade by
hand to make certain the teeth do not contact any metal
surfaces.
7. Fig. 32, illustrates the fence in the rear position
enabling you to cross-cut a standard 2 x 6 in one pass.
8. Fig. 33, illustrates the stock stop (A) being used for
repetitive cutting operations.
TYPICAL OPERATIONS AND HELPFUL HINTS
1. Before cutting, make certain the miter and bevel angles are set and firmly locked in place.
2. Before cutting, determine that the workpiece is the right size for the saw.
3. Place the workpiece on the table and hold it firmly against the fence.
4. For best results cut at a slow, even cutting rate.
5. If the workpiece you are cutting causes your hand to be within 4 inches of the saw blade the
workpiece must be clamped to the fence before cutting.
6. Never attempt any freehand cutting (wood that is not held firmly against the fence and table).
