Fig. 2
Fig. 3
Fig. 4

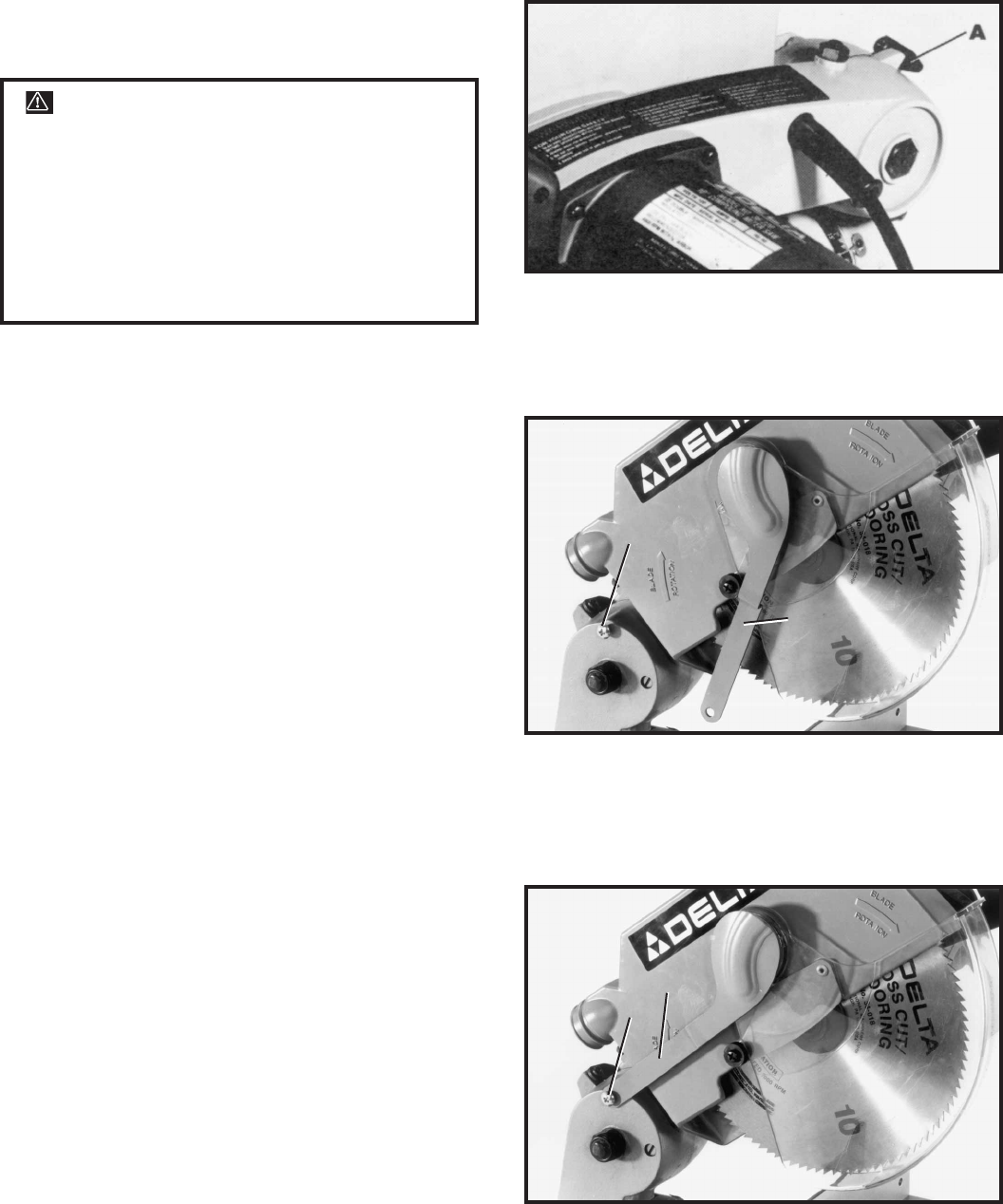

1. Push down on the cuttinghead handle slightly and
rotate latch (A) Fig. 2, to the other side.
2. The cuttinghead will then move to the up position and
the lower blade guard link (B) Fig. 3, will hang freely in the
down position, as shown.
3. Remove special screw (C) Fig. 3, from the pivot
bracket.
4. Insert special screw (C) Fig. 4, into hole in end of
lower blade guard link (B) and reassemble special screw
(C) into hole in pivot bracket, as shown.
B
C
C
B
ASSEMBLING LOWER
BLADE GUARD LINK
WARNING: DO NOT ATTEMPT TO OPERATE
THE SAW WITHOUT THE BLADE GUARD IN
PLACE, AS PERSONAL INJURY OR PRODUCT
DAMAGE CAN OCCUR. THE BLADE GUARD
ASSEMBLY SERVES AS A RETENTION MEANS
FOR THE SAW ARBOR. ANY PRODUCT ADJUST-
MENTS OR SERVICING, NOT COVERED BY THIS
INSTRUCTION MANUAL, SHOULD BE UNDERTAK-
EN ONLY BY AN AUTHORIZED DELTA SERVICE
REPRESENTATIVE.
