SKU 91130 For technical questions, please call 1-800-444-3353. Page 20
9. Make sure to insert the shaft of the router bit all the way into the Collet
(18D, 24D). (See Figure P.)
10. Tighten the Collet Nut (19D) by pulling and holding the Spindle Lock Lever (22E)
forward while screwing the Collet Nut in a clockwise direction.
(See Figures K and P.)
11. Replace the Collet Assembly Cover (15D). (See Figure N.)
To Adjust The Depth Of Cut:
1. Loosen the Height Adjustment Lock (23D) by turning it in a
counterclockwise
direction, using the Wrench (21D) provided. (See Figure Q.)

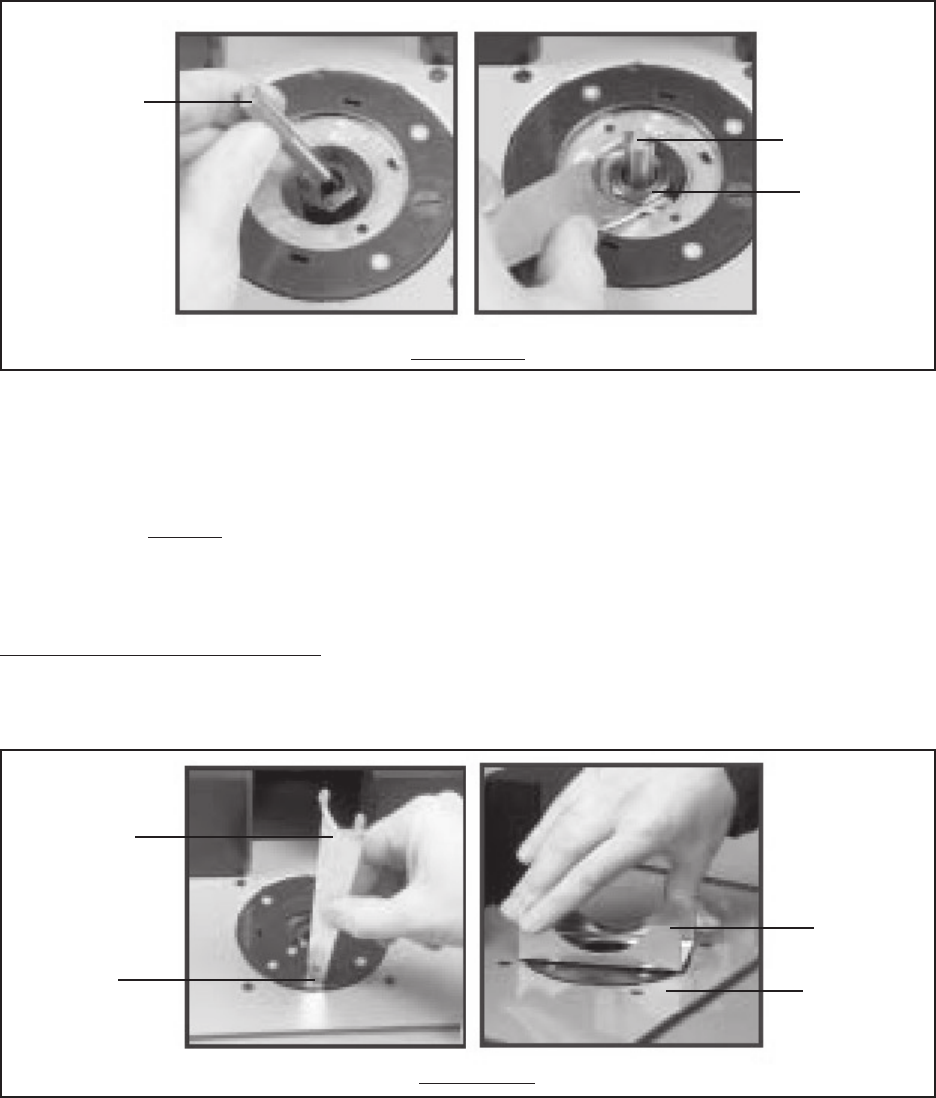

ROUTER BIT
(NOT INCLUDED)
ROUTER BIT
COLLET
NUT
(19D)
FIGURE P
FIGURE Q
HEIGHT
ADJUSTMENT
LOCK
(23D)
WRENCH
(21D)
ADJUSTMENT
TOOL
(27D)
ADJUSTMENT
BOARD
(17D)
12. Adjust the depth of cut to the desired depth by turning the Height Adjustment
Ring (14D). Then, use the Height Adjustment Lock (23D) to lock the setting in
place. NOTE: Make sure the Height Adjustment Lock is aligned in a locking
position and that the router bit is firmly secured. (See Figure N.)
