1. Intermittent operation (Trigger fi re):
2. Continuous operation (Push lever fi re):
(1) Intermittent operation (Trigger fi re)
Use the SINGLE ACTUATION
MECHANISM setting.
WARNING
Please note that the SINGLE ●
ACTUATION MECHANISM of this
Hitachi nailer will drive a nail each
time the push lever is pressed
against the wood as long as the
trigger is pressed.
For intermittent operation, set the ●
switching device to the upward
position completely. (i.e. Set to
SINGLE ACTUATION MECHANISM.)
To avoid double fi ring or accidental ●
fi ring due to recoil.
1) Set the switching device to SINGLE
ACTUATION MECHANISM.
2) Pull the trigger rapidly and fi rmly.

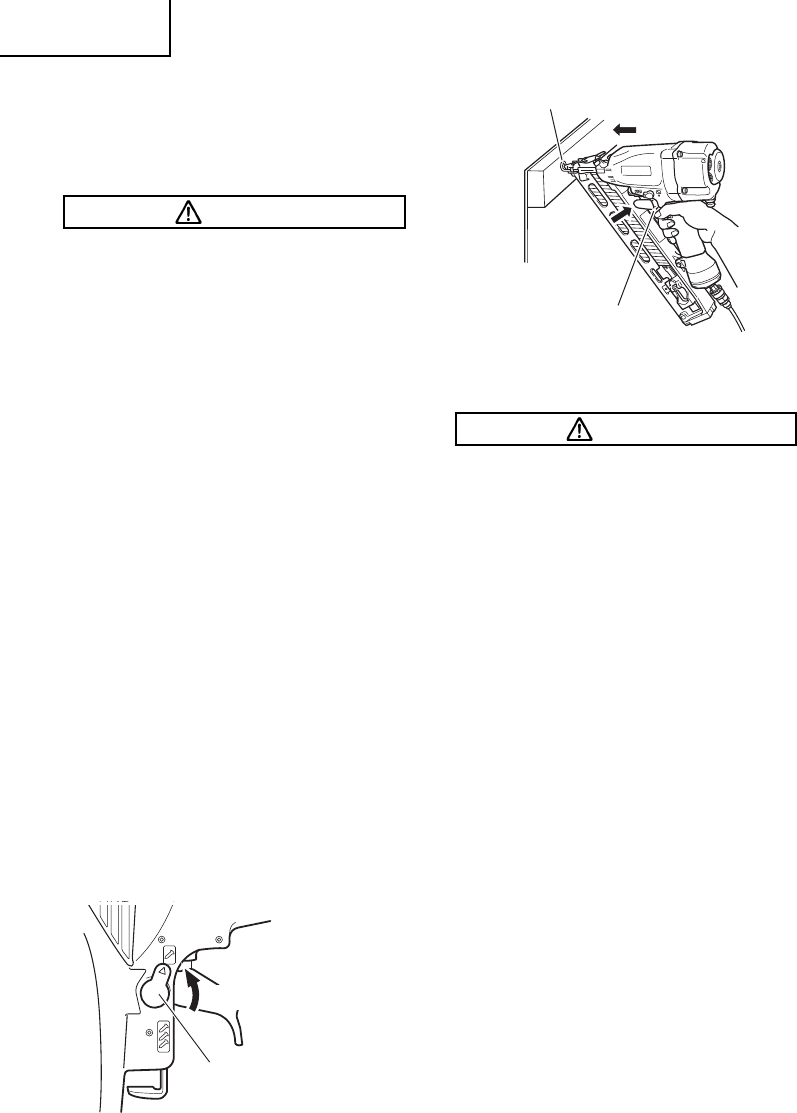

1 Set the switching device to the upward
position (to set to SINGLE ACTUATION
MECHANISM).
(Set the switching device to the
upward position completely as shown
in the diagram. Otherwise, it will
be set to CONTACT ACTUATION
MECHANISM.)
2 Position the nail outlet on the workpiece
with fi nger off the trigger.
3 Depress the push lever fi rmly until it is
completely depressed.
4 Pull the trigger to drive a nail.
5 Remove fi nger from the trigger.
To continue nailing in a separate location,
move the nailer along the wood, repeating
steps 2 - 5 as required.
Switching Device
1 Upward position
Push Lever
Trigger
3
4
(2) Continuous operation (Push lever fi re)
Using CONTACT ACTUATION
MECHANISM
WARNING
To avoid double fi ring or accidental ●
fi ring due to recoil.
1) Do not press the nailer against the
wood with excessive force.
2) Separate the nailer from the wood
as it recoils after nailing.
1 Set the switching device to the
downward position (to set to CONTACT
ACTUATION MECHANISM).
(Set the switching device to the
downward position completely as
shown in the diagram. Otherwise, it will
not operate properly.)
2 Pull the trigger with the Nailer off the
workpiece.
3 Depress the push lever against the
workpiece to drive a nail.
4 Move the Nailer along the workpiece
with a bouncing motion.
Each depression of the push lever will
drive a nail.
As soon as the desired number of nails
have been driven, remove fi nger from the
trigger.
