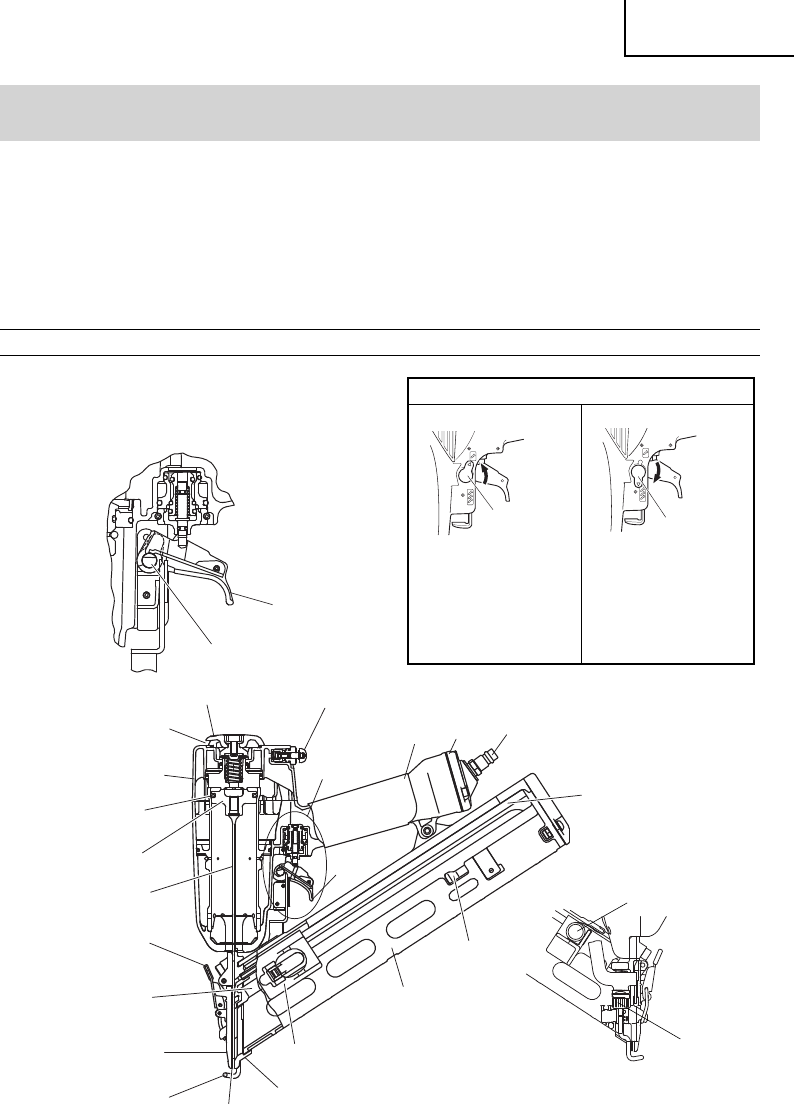

Air Plug
Blow Nozzle Knob
Blade Guide
Top Cover
Body
Cap
Magazine
Nail Feeder (B)
Trigger
Switching Device
Enlarged view
of the valve part
Valve part
Exhaut Cover
Air Outlet
Piston O-ring
Driver Blade
Lock Lever
Nail Feeder (A)
Guide Plate (A)
Piston
Push Lever
Nail Stopper
Nail Rail
Trigger
Outlet (Firing Head)
Adjuster
Ribbon Spring
Nailing operation Switching device
SINGLE
ACTUATION
MECHANISM
(Switching device:
upward position)
CONTACT
ACTUTION
MECHANISM
(Switching device:
downward position)
Switching
Device
Switching
Device
OPERATION
NOTE
The information contained in this Manual is designed to assist you in the safe operation of
the Nailer.
Some illustrations in this Manual may show details or attachments that diff er from those
on your own Nailer.
NAME OF PARTS
