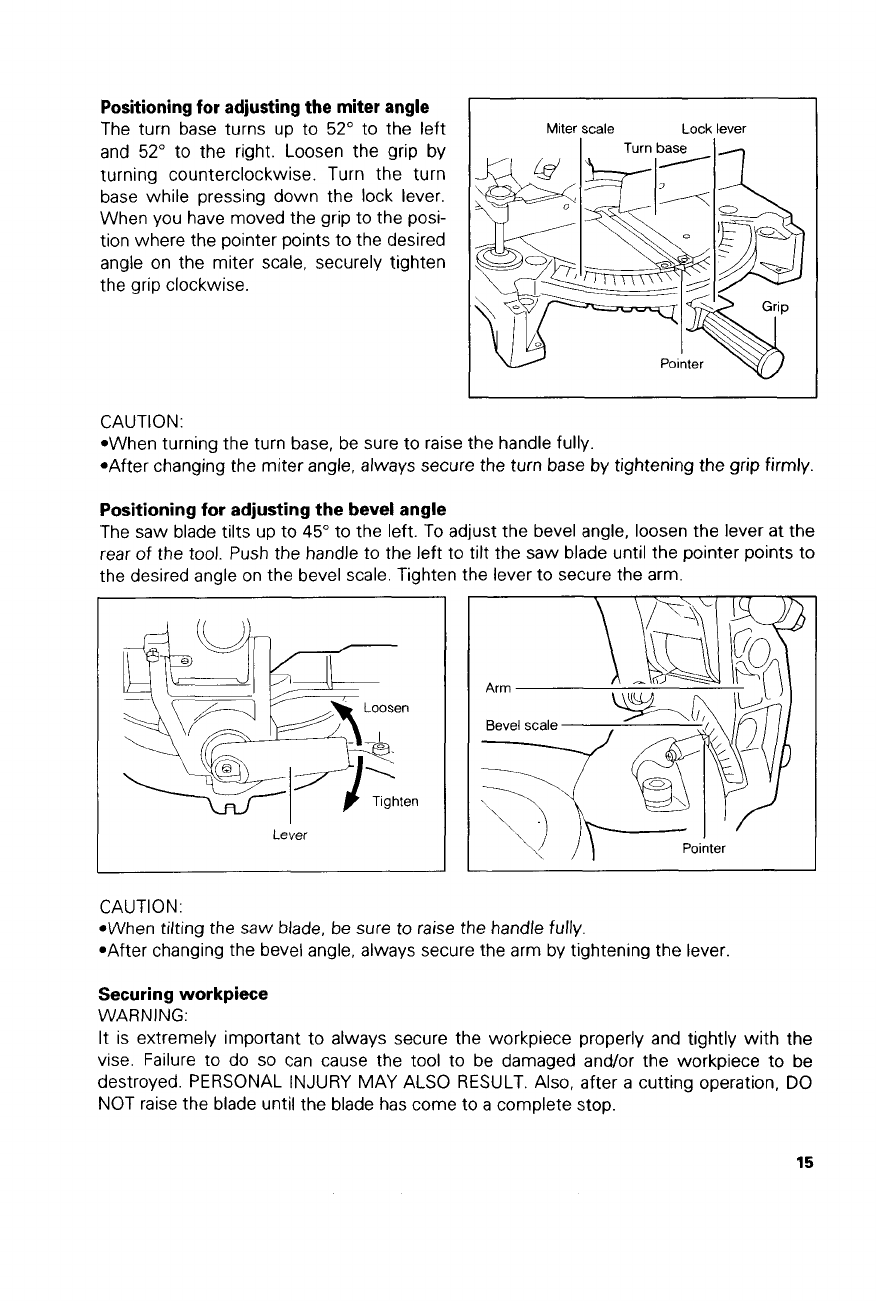

Positioning for adjusting the miter angle
The turn base turns up to
52"
to the left
and
52"
to the right. Loosen the grip by
turning counterclockwise. Turn the turn
base while pressing down the lock lever.
When you have moved the grip to the posi-
tion where the pointer points to the desired
angle on the miter scale, securely tighten
the grip clockwise.
I
Miter
scale
Lock
lever
CAUTION:
*When turning the turn base, be sure to raise the handle fully
*After changing the miter angle, always secure the turn base by tightening the grip firmly.
Positioning for adjusting the bevel angle
The saw blade tilts up to
45"
to the left. To adjust the bevel angle, loosen the lever at the
rear of the tool. Push the handle to the left to tilt the saw blade until the pointer points to
the desired angle on the bevel scale. Tighten the lever to secure the arm.
Lever
Arm
Bevel
scale
Pointer
CAUTION:
*When tilting the saw blade, be sure to raise the handle fully.
*After changing the bevel angle, always secure the arm by tightening the lever.
Securing workpiece
WARN
I
N
G
:
It
is extremely important to always secure the workpiece properly and tightly with the
vise. Failure to do
so
can cause the tool
to
be damaged and/or the workpiece to be
destroyed. PERSONAL INJURY MAY ALSO RESULT. Also, after
a
cutting operation,
DO
NOT raise the blade until the blade has come to
a
complete stop.
15
