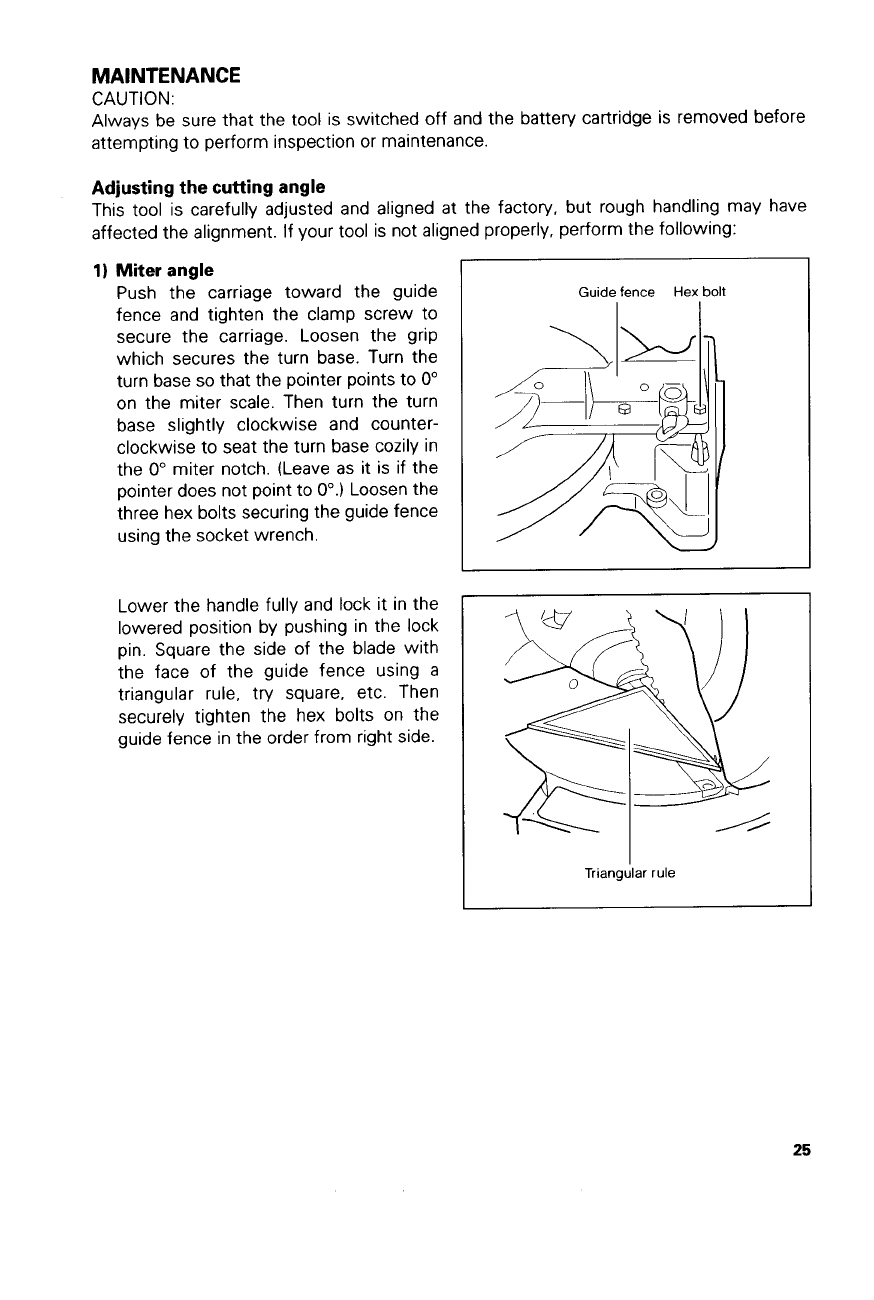

MAINTENANCE
CAUTION:
Always be sure that the tool is switched off and the battery cartridge is removed before
attempting to perform inspection or maintenance.
Adjusting the cutting angle
This tool is carefully adjusted and aligned
at
the factory, but rough handling may have
affected the alignment. If your tool is not aligned properly, perform the following:
1)
Miter angle
Push the carriage toward the guide
fence and tighten the clamp screw to
secure the carriage. Loosen the grip
which secures the turn base. Turn the
turn base
so
that the pointer points to
0"
on the miter scale. Then turn the turn
base slightly clockwise and counter-
clockwise to seat the turn base cozily in
the
0"
miter notch. (Leave as
it
is if the
pointer does not point to
O".)
Loosen the
three hex bolts securing the guide fence
using the socket wrench.
Lower the handle fully and lock
it
in the
lowered position by pushing in the lock
pin. Square the side of the blade with
the face of the guide fence using
a
triangular rule, try square, etc. Then
securely tighten the hex bolts on the
guide fence in the order from right side.
Guide fence Hex
bolt
I
Triangular rule
25
