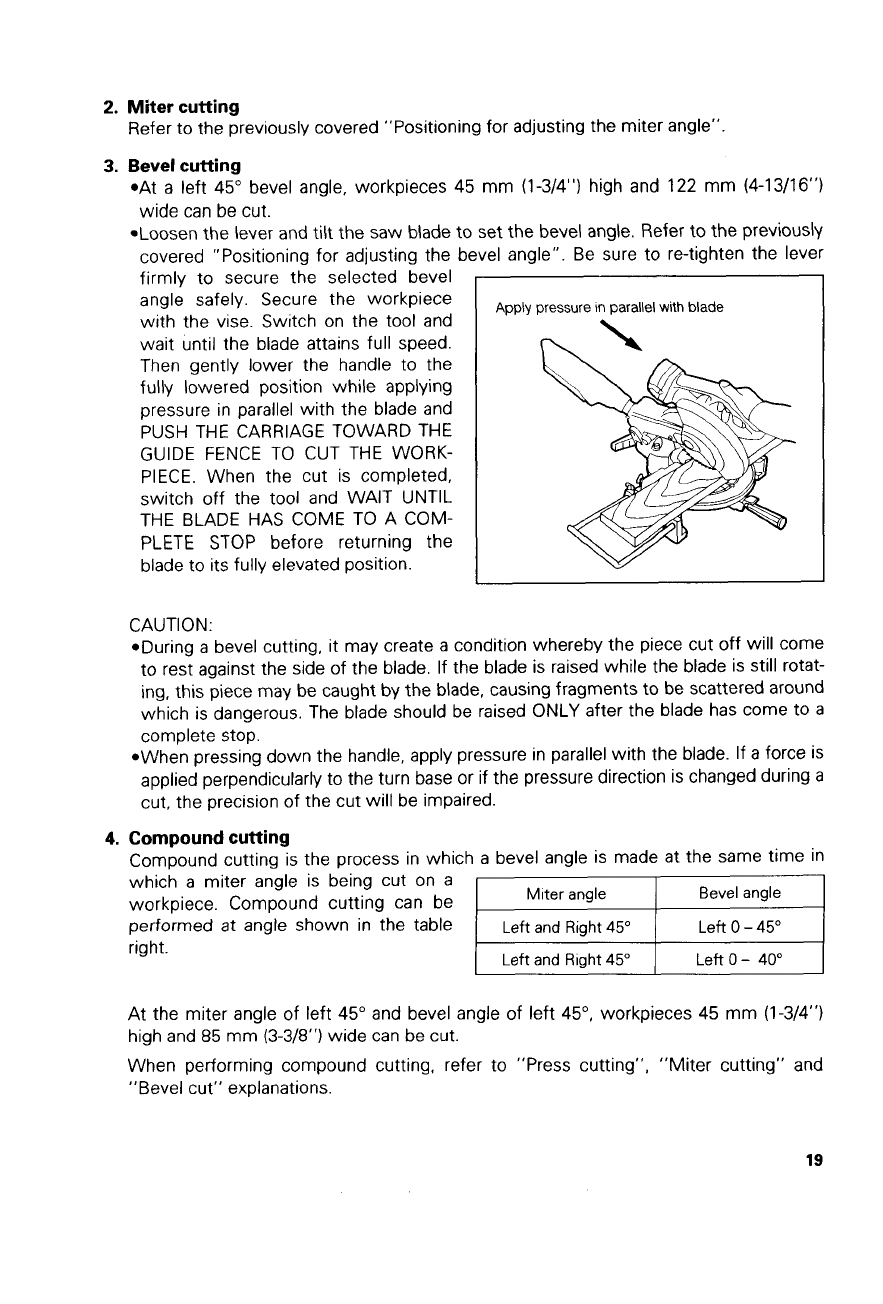

2.
Miter cutting
3.
Bevel
cutting
Refer to the previously covered "Positioning for adjusting the miter angle".
*At
a
left 45" bevel angle, workpieces 45 mm (1-3/4") high and 122 mm (4-13/16")
wide can be cut.
*Loosen the lever and
tilt
the saw blade to set the bevel angle. Refer to the previously
covered "Positioning for adjusting the bevel angle". Be sure to re-tighten the lever
firmly to secure the selected bevel
angle safely. Secure the workpiece
with the vise. Switch on the tool and
wait until the blade attains full speed.
Then gently lower the handle to the
fully lowered position while applying
pressure in parallel with the blade and
PUSH THE CARRIAGE TOWARD THE
PIECE. When the cut is completed,
switch off the tool and
WAIT
UNTIL
PLETE
STOP before returning the
blade to its
fully
elevated position.
GUIDE FENCE TO CUT THE WORK-
THE BLADE HAS COME TO A COM-
Apply pressure
in
parallel
with
blade
CAUTION:
*During
a
bevel cutting, it may create a condition whereby the piece cut
off
will come
to rest against the side of the blade. If the blade is raised while the blade is still rotat-
ing, this piece may be caught by the blade, causing fragments to be scattered around
which is dangerous. The blade should be raised
ONLY
after the blade has come to
a
complete stop.
*When pressing down the handle, apply pressure in parallel with the blade. If a force is
applied perpendicularly to the turn base or if the pressure direction is changed during
a
cut, the precision of the cut
will
be impaired.
4.
Compound cutting
Compound cutting is the process in which
a
bevel angle is made
at
the same time in
performed at angle shown in the table
which a miter angle is being cut on
a
workpiece. Compound cutting can be
right.
Left
and
Right
45"
Left
0
-
40"
At the miter angle
of
left 45" and bevel angle of left 45", workpieces 45 mm (1-3/4")
high and
85
mm
(3-3/8")
wide can be cut.
When performing compound cutting, refer to "Press cutting", "Miter cutting" and
"Bevel cut" explanations.
19
