waste.
WARNING!
1. Keep a used battery away from children.
2. Danger of explosion if the battery is incorrectly replaced. Only
certified module from GAI can be used as a replacement.
3. Do not expose the battery to excessive heat or fire.
4. If the battery shows signs of leakage, contact your local vendor
immediately.
8. CN8: 2x5 2.0mm Audio Pin Header
This port connects to AC’97 compatible audio devices through an adapter cable, e.g., that
features a 10-pin header to audio phone jacks on a slot bracket.

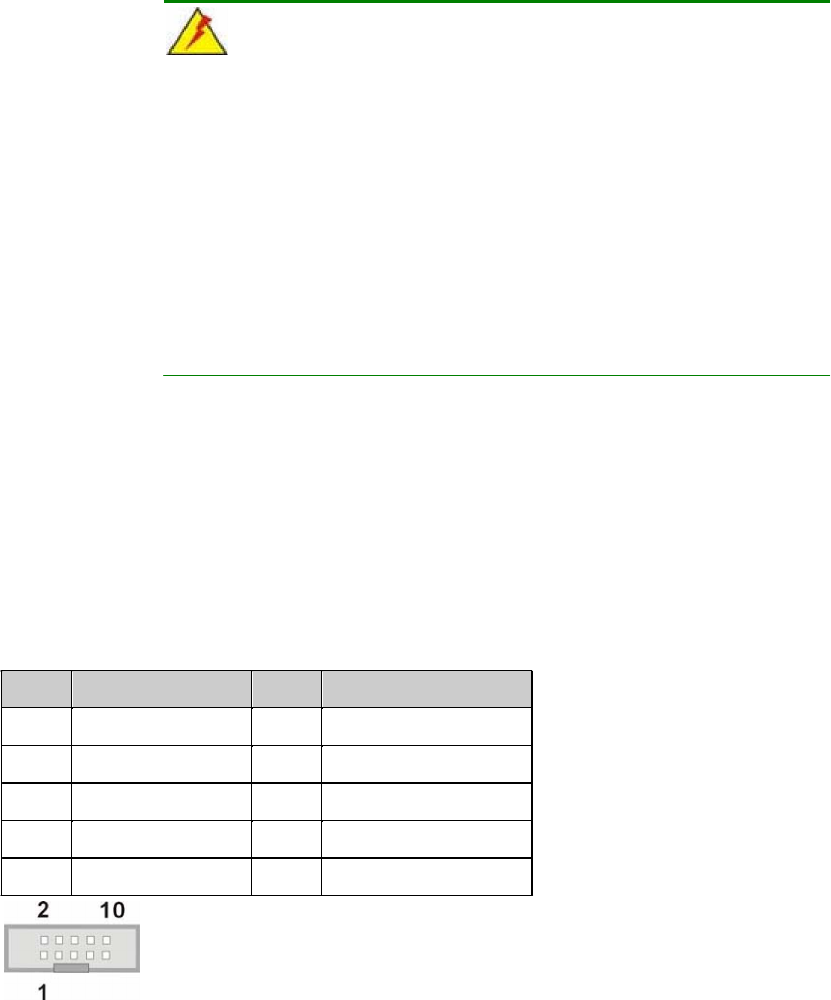

Table 2-9 CN8 Audio Pinouts
PIN DESCRIPTION PIN DESCRIPTION
1 LINE OUT R 2 LINE IN R
3 GROUND 4 GROUND
5 LINE OUT L 6 LINE IN L
7 GROUND 8 GROUND
9 MIC IN 10 N/C
Figure 2-9 CN8 Audio Port
2-15
