3.3 Jumper Settings
NOTE:
A jumper is a metal bridge that is used to
close an electrical circuit. It consists of
two metal pins and a small metal clip
(often protected by a plastic cover) that
slides over the ins to connect them. To
CLOSE/SHORT a jumper means
connecting the pins of the jumper with the
plastic clip and to OPEN a jumper means
removing the plastic clip from a jumper.

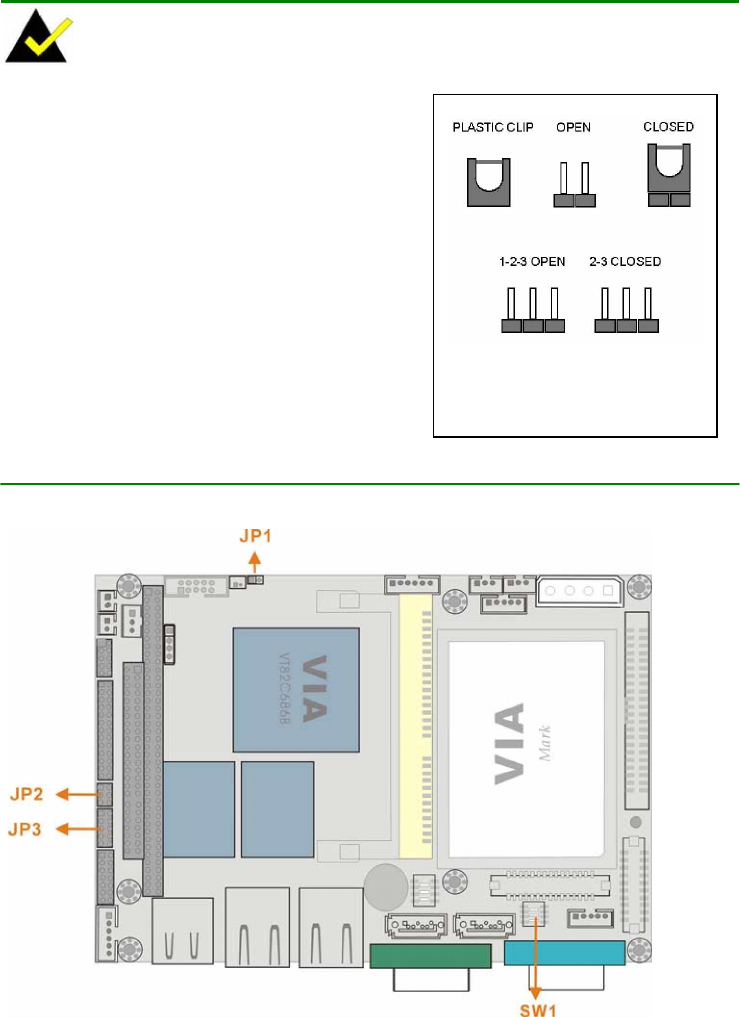

Figure 3-2 Jumper
Figure 3-3 Locations of Configuration Jumpers
3-5
