8 IRQ14 28 LA18
9 DACK0# 29 LA17
10 DRQ0 30 MEMR#
11 DACK5# 31 MEMW#
12 DRQ5 32 SD8
13 DACK6# 33 SD9
14 DRQ6 34 SD10
15 DACK7# 35 SD11
16 DRQ7 36 SD12
17 VCC 37 SD13
18 MASTER# 38 SD14
19 GROUND 39 SD15
20 GROUND 40 GROUND

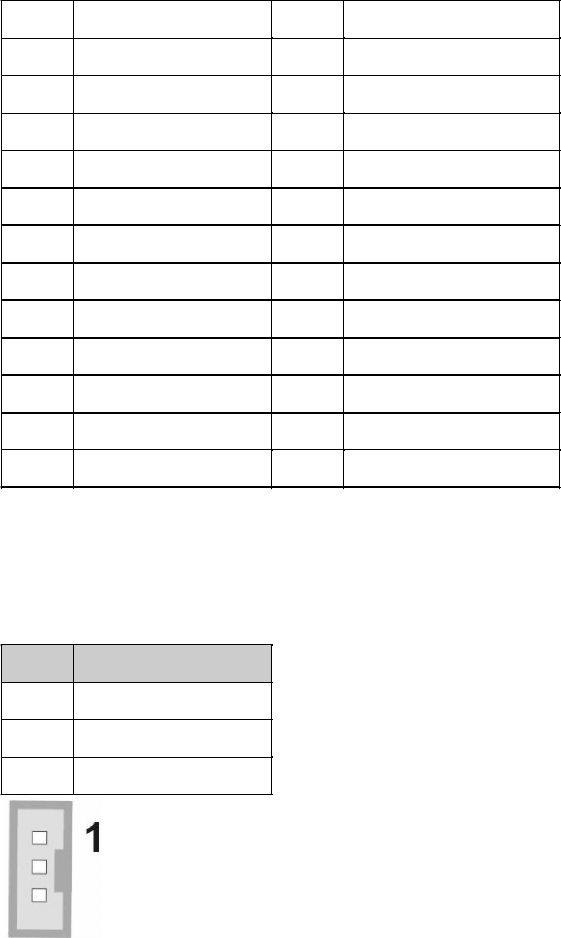

11. CN11: External –VCC Power Connector
Table 2-13 CN11 -VCC PC/104 Supplementary Power
PIN DESCRIPTION
1 -5V
2 GND
3 -12V
Figure 2-11 CN11 –VCC Power
2-18
