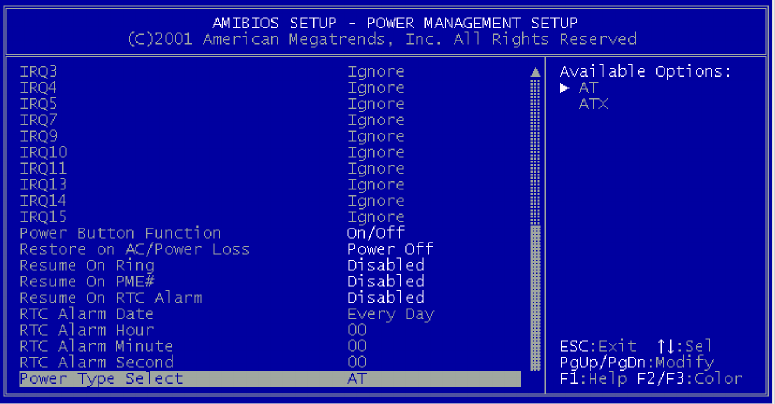

IRQ#
These options allow IRQ settings to be modified.
„
Power Button Function
Allows the system to go into On/Off mode or suspend mode when the power button is
pressed. Configuration options: [On/Off] [Suspend].
„
Restore on AC/Power Loss
When set to Power Off, the system goes into off state after an AC power loss. When set to
Power On, the system goes on after an AC power loss. When set to Last State, the system
goes into either off or on state Whatever was the system state before the AC power loss.
Configuration options: [Power Off] [Power On] [Last State]
„
Resume on Ring
Allows you to enable or disable RI to generate a wake event. Configuration options:
[Disabled] [Enabled]
„
Resume on PME#
Allows you to enable or disable PCI PME# to generate a wake event. Configuration options:
[Disabled] [Enabled]
„
Resume on RTC Alarm
Allows you to enable or disable RTC to generate a wake event. When this item is set to
Enabled, the items RTC Alarm Date, RTC Alarm Hour, RTC Alarm Minute, and RTC Alarm
Second appear with set values. Configuration options: [Disabled] [Enabled].
„
Power Type Select
This feature is switch of Power Type function. Configuration options: [AT] [ATX].
