3-5
Cisco ASR 9001 and Cisco ASR 9001-S Routers Hardware Installation Guide
OL-26701-02
Chapter 3 Installing Modules and Cables in the Chassis
Installing and Removing Modular Port Adapters

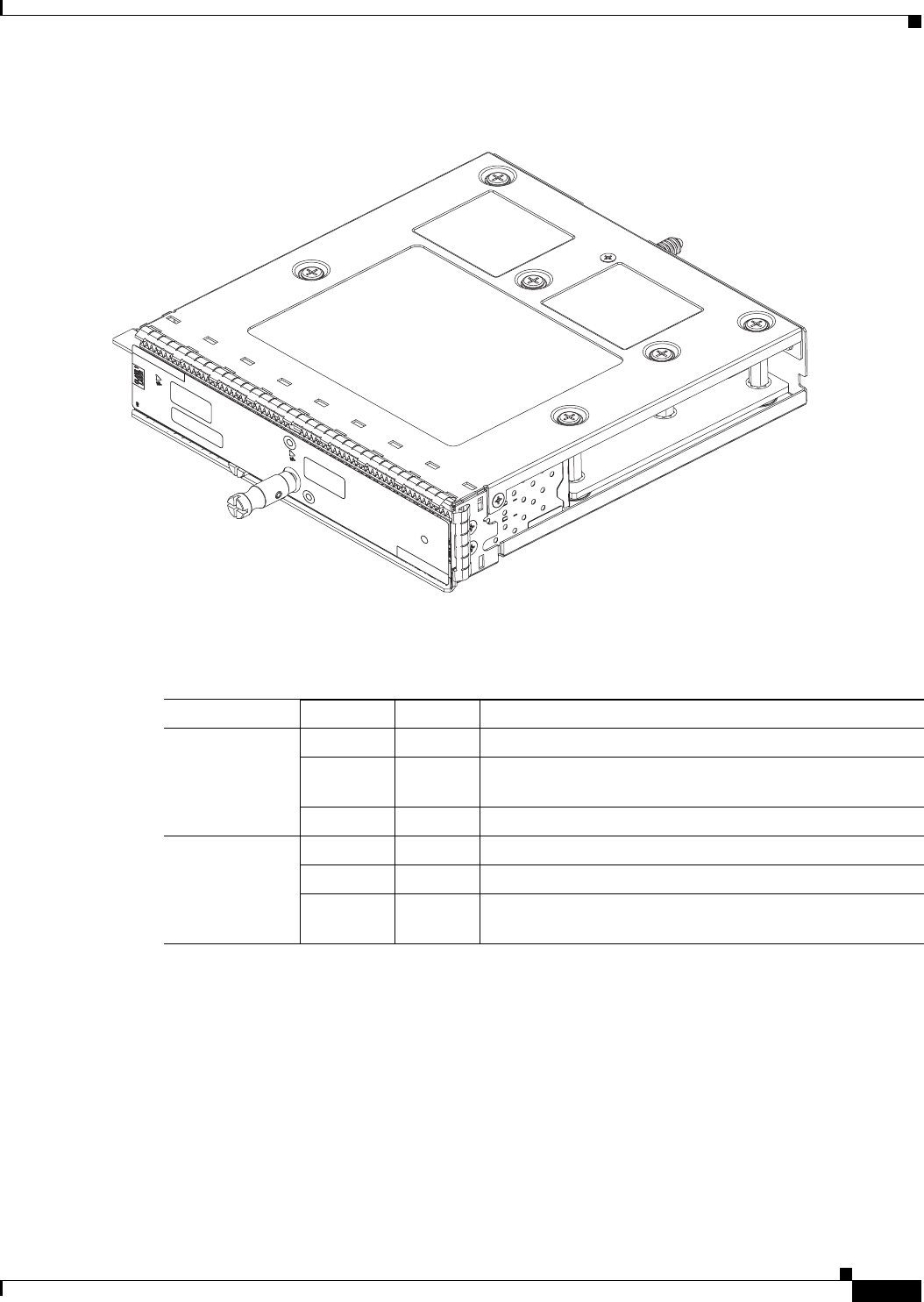

Figure 3-4 2-Port 10 Gigabit Ethernet Modular Port Adapter
Table 3-2 describes the 2-Port 10 Gigabit Ethernet modular port adapter LEDs.
Installing and Removing Modular Port Adapters
These sections describe how to install or remove modular port adapters (MPAs) on the
Cisco ASR 9001 Router.
Handling Modular Port Adapters (MPAs), page 3-6
Online Insertion and Removal, page 3-6
Modular Port Adapter (MPA) Installation and Removal, page 3-7
Optical Device Installation and Removal, page 3-8
330784
STATUS
A9K-MPA-2X10GE
A9K-MPA-2X10GE
0
Table 3-3 2-Port 10 Gigabit Ethernet Modular Port Adapter LEDs
LED Label Color State Meaning
A/L Off Off Port is not enabled.
Green On Port is enabled and the link is up. The MPA A/L LED will
blink green when there is traffic activity.
Amber On Port is enabled and the link is down.
STATUS Off Off Modular port adapter power is off.
Green On Modular port adapter is ready and operational.
Amber On Modular port adapter power is on and good, and the
modular port adapter is being configured.
