ASSEMBLY
Assembly is best done in the area where the saw will be used. When you remove the table saw base, loose parts, and
hardware from the packing materials, check all items with the loose parts list and drawing. If you are unsure about the
description of any part, refer to the drawing. If any parts are missing, delay assembling until you have obtained the missing
part(s).
ASSEMBLING LEG STAND
See Figures 8 and 9.
Take the following hardware from the leg stand hardware
bag:
24 carriage bolts (5/16-18 x 3/4 in.)
4 leveling feet
32 flat washers (5/16 in.)
32 hex nuts (5/16-18)
Note: Remaining hardware from this bag is used for mount-
ing leg stand on the table saw base and mounting
storage brackets to upper brace.
Take 4 legs and 8 braces from loose parts.
Place an upper side brace inside two of the legs, with the
legs wide end up. (Upper side braces have two large
holes in each end.) Make sure the two posts on the leg
align with the small holes on the brace.

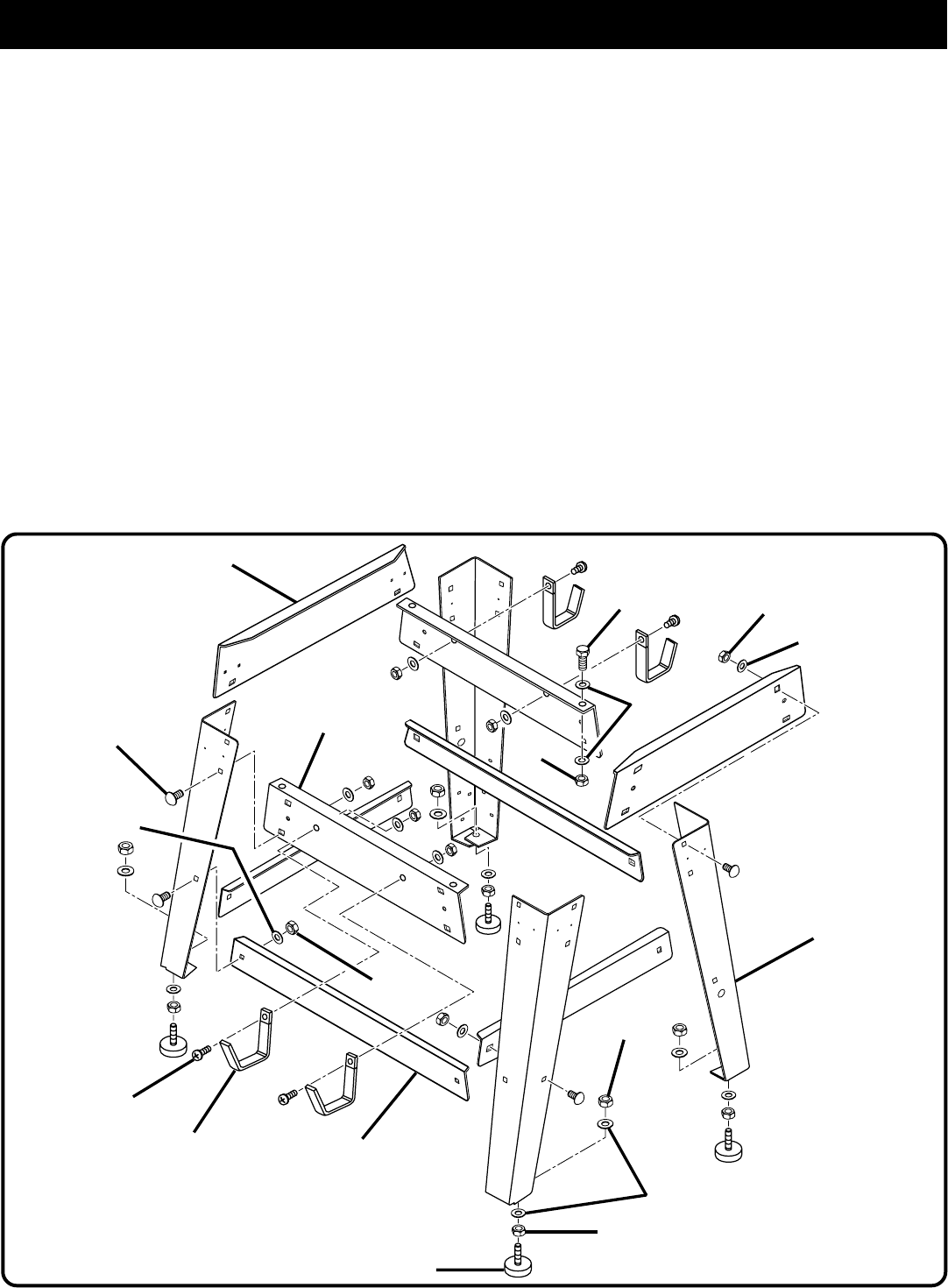

Fig. 8
LEVELING FOOT
CARRIAGE
BOLT
WASHER
BOLT
HEX NUT
UPPER BRACE
LOWER BRACE
STORAGE
BRACKET(S)
HEX NUT
LEG
SCREW
WASHER
HEX
NUT
WASHER
HEX NUT
WASHER
HEX NUT
Align the two large holes on the brace and the legs. Insert
the carriage bolts. Add flat washers and hex nuts and
hand tighten. Repeat for the other upper brace. These are
the front and back sets.
For the side sets, install a upper brace on two legs. Add
hardware and finger tighten. Repeat for the other upper
brace.
Use the same steps to install the lower braces. Tighten all
hex nuts with a wrench.
Place a hex nut and flat washer on each leveling foot.
Install the leveling feet from the bottom of each leg with
the bolts pointing up. Cap with the remaining flat washers
and hex nuts but do not tighten.
Move the leg set to desired location. Adjust the leveling
feet with a wrench, then tighten the top hex nut.
UPPER
SIDE BRACE
