Ryobi BT3100-1 Saw User Manual



Page 49
504
7 Arm ............................................................. 1
8 Cover .......................................................... 1
9 Dowel Pin.................................................... 1
10 Riving Knife Assembly ................................ 1
11 Warning Label ............................................ 1
12 Hand Warning Label ................................... 1
Key
No. Description Quan.
Key
No. Description Quan.
500 3/32 in. Hex Key ......................................... 1
501 1/8 in. Hex Key ........................................... 1
502 5/32 in. Hex Key ......................................... 1
503 3/16 in. Hex Key ......................................... 1
504 Large Wrench ............................................. 1
505 Small Wrench ............................................. 1
506 Saw Blade .................................................. 1
Key
No. Description Quan.
Key
No. Description Quan.

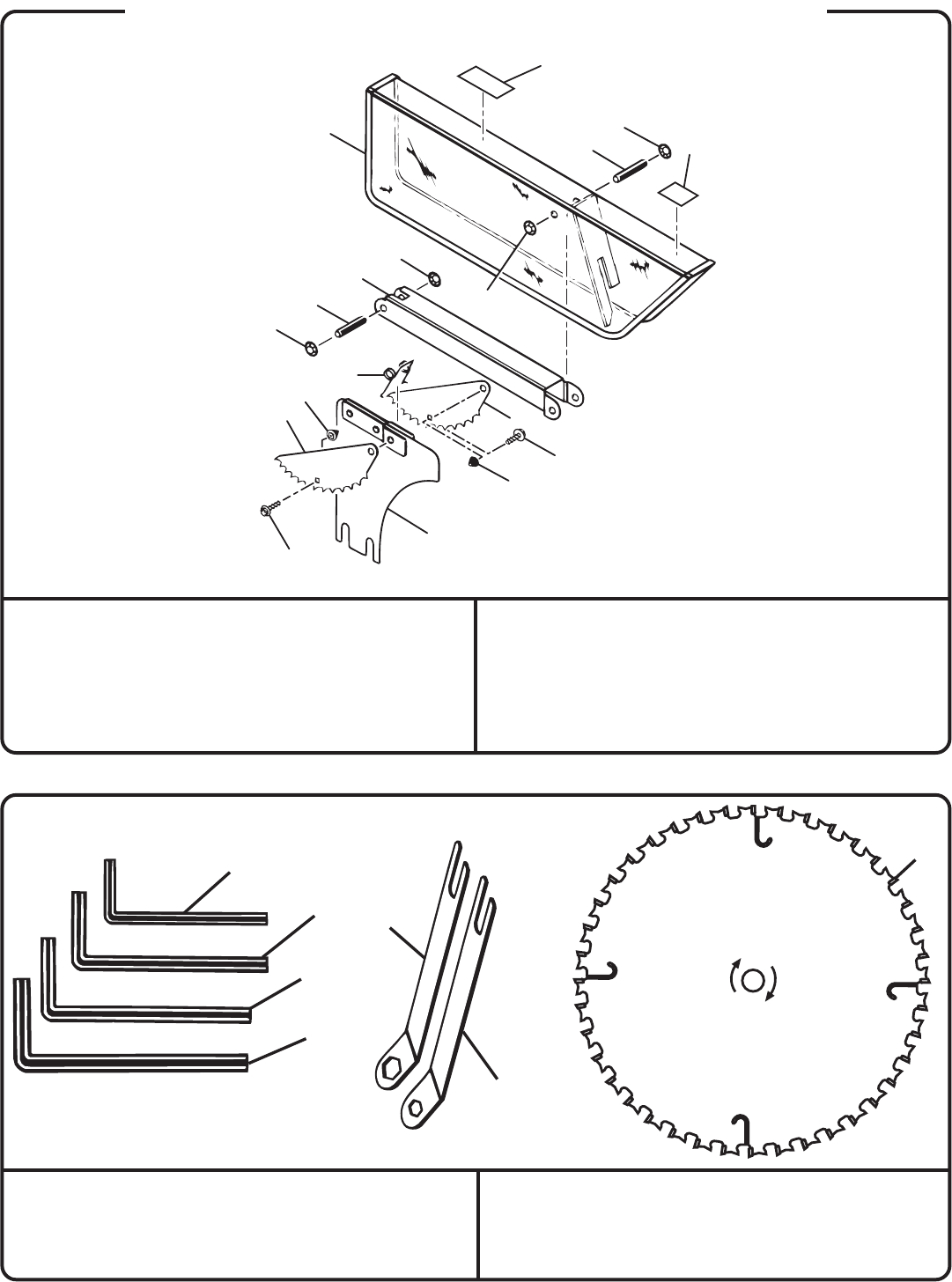

FIGURE 63: REPLACEMENT PARTS
500
506
502
503
505
501
1 Screw and Washer ..................................... 2
2 Anti-Kickback Fingers ................................. 2
3 Spacer Cap ................................................. 2
4 Torsion Spring ............................................ 1
5 Push Nut ..................................................... 4
6 Dowel Pin.................................................... 1
RYOBI 10 in. (254 mm) TABLE SAW - MODEL NO. BT3100-1
FIGURE 62: BLADE GUARD ASSEMBLY
1
2
3
4
5
6
7
5
8
5
9
5
10
12
11
1
2
3
