G0449/G0450 37" Drum Sander
-43-







   

 













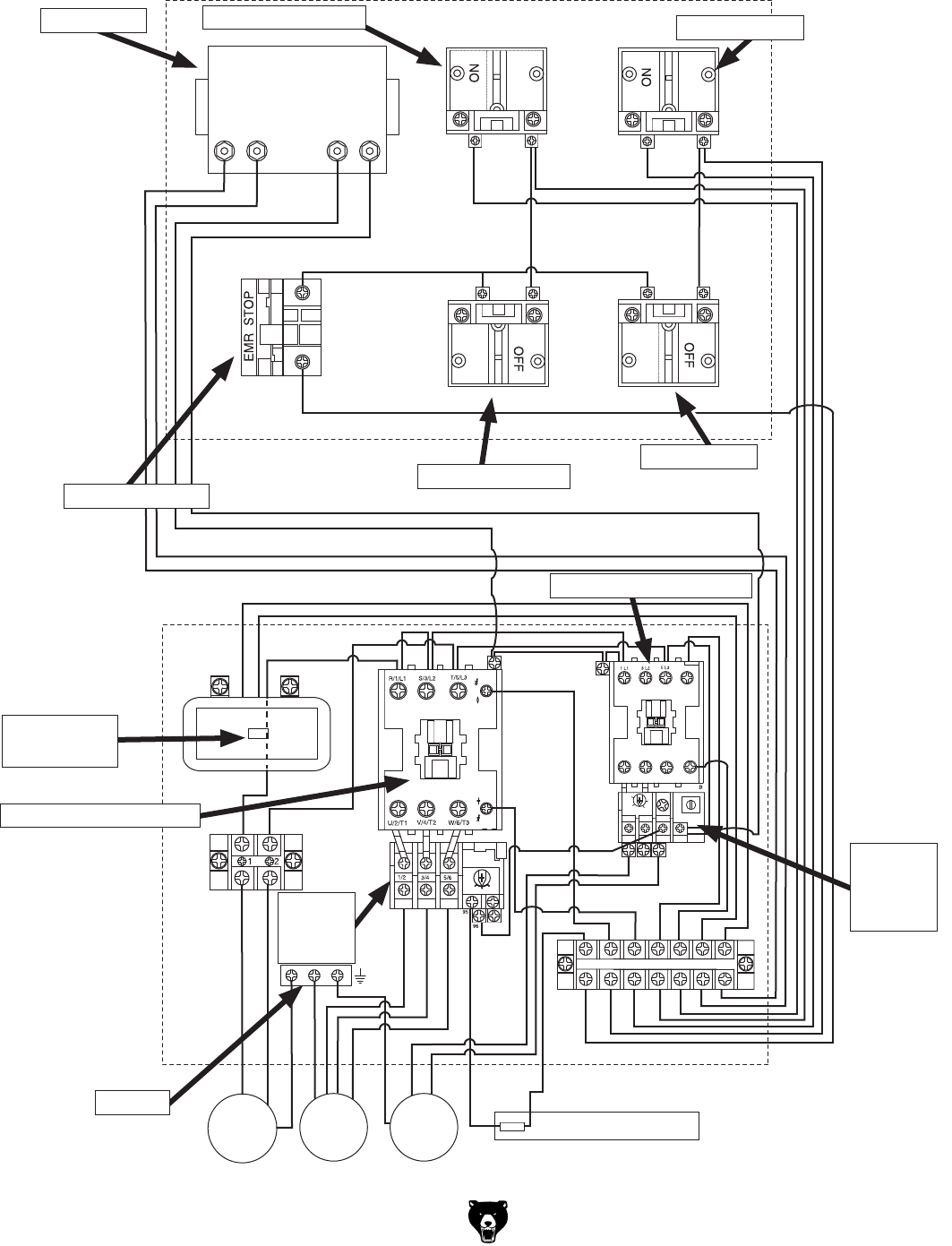

G0449 Wiring Diagram
Conveyor START
Drum START
E-STOP Button
Conveyor STOP
Drum STOP
Amp Meter
Main
Motor
Relay
Current
Transformer
Main Motor Contactor
Feed Motor Contactor
Feed
Motor
Relay
Ground
