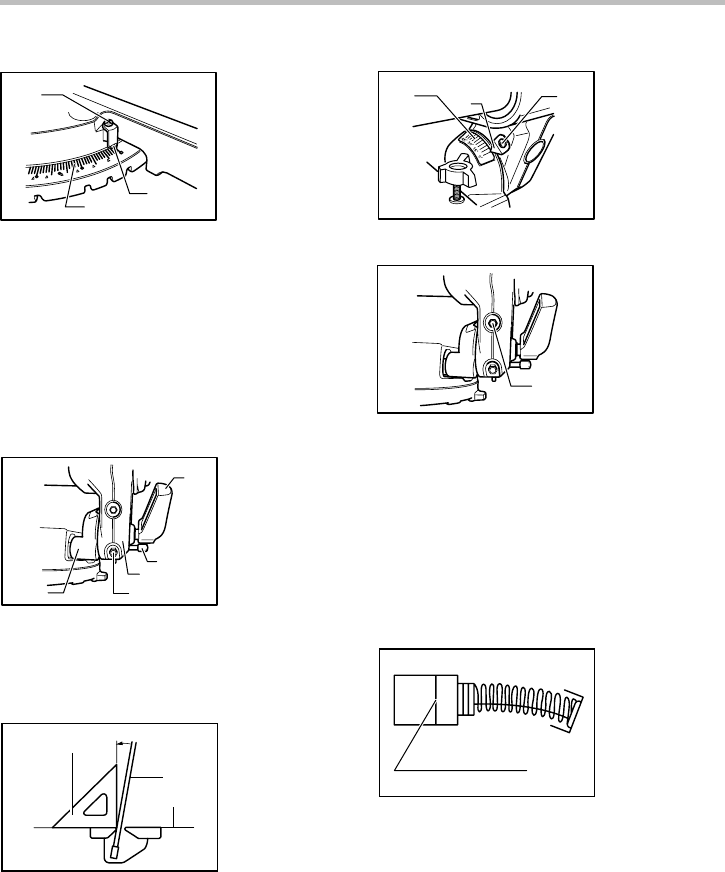

2. Bevel angle
(1) 0° bevel angle
Push the carriage toward the guide fence and
tighten two clamp screws to secure the
carriage. Lower the handle fully and lock it in
the lowered position by pushing in the stopper
pin. Loosen the lever at the rear of the tool.
Turn the 0° bevel angle adjusting bolt (lower
bolt) on the right side of the arm two or three
revolutions counterclockwise to tilt the blade
to the right.
1
2
3
4
5
003943
Carefully square the side of the blade with the
top surface of the turn base using the
triangular rule, try-square, etc. by turning the
0° bevel angle adjusting bolt clockwise. Then
tighten the lever securely.
1
2
3
001819
Make sure that the pointer on the arm point to
0° on the bevel scale on the arm holder. If it
does not point to 0°, loosen the screw which
secures the pointer and adjust the pointer so
that it will point to 0°.
1
2
3
011306
(2) 45° bevel angle
1
003945
Adjust the 45° bevel angle only after
performing 0° bevel angle adjustment. To
adjust left 45° bevel angle, loosen the lever
and tilt the blade to the left fully. Make sure
that the pointer on the arm points to 45° on
the bevel scale on the arm holder. If the
pointer does not point to 45°, turn the 45°
bevel angle adjusting bolt (upper bolt) on the
right side of the arm until the pointer points to
45°.
Replacing carbon brushes
1
001145
Remove and check the carbon brushes regularly.
Replace when they wear down to the limit mark. Keep
the carbon brushes clean and free to slip in the holders.
Both carbon brushes should be replaced at the same
time. Use only identical carbon brushes.
Use a screwdriver to remove the brush holder caps. Take
out the worn carbon brushes, insert the new ones and
secure the brush holder caps.
1. Limit mark
1. Left 45 ﾟ bevel
angle adjusting
bolt
1. Bevel scale
2. Pointer
3. Screw
1. Triangular rule
2. Saw blade
3. Top surface of
turn table
1. Lever
2. Arm holder
3. 0 ﾟ degree
bevel angle
adjusting bolt
4. Arm
5. Release button
1. Screw
2. Miter scale
3. Pointer
