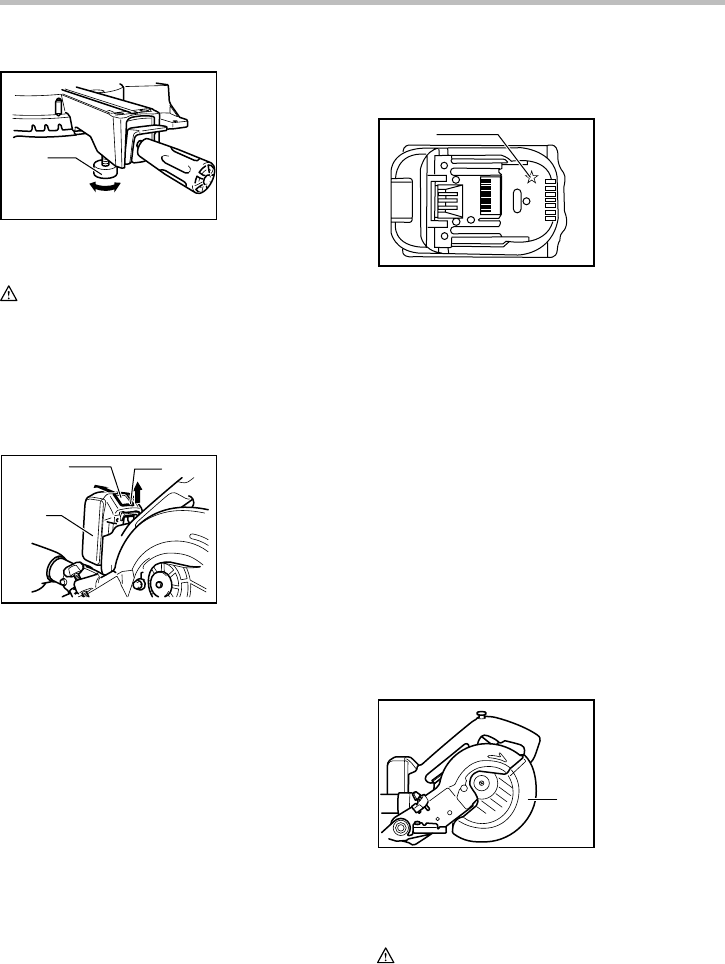

FUNCTIONAL DESCRIPTION
WARNING:
• Always be sure that the tool is switched off and
the battery cartridge is removed before
adjusting or checking the functions on the tool.
Failure to switch off and remove the battery
cartridge may result in serious personal injury from
accidental start-up.
Installing or removing battery cartridge
1
2
3
011235
•
Always switch off the tool before insertion or
removal of the battery cartridge.
• To remove the battery cartridge, withdraw it from
the tool while sliding the button on the front of the
cartridge.
• To insert the battery cartridge, align the tongue on
the battery cartridge with the groove in the housing
and slip it into place. Always insert it all the way
until it locks in place with a little click. If you can see
the red part on the upper side of the button, it is not
locked completely. Insert it fully until the red part
cannot be seen. If not, it may accidentally fall out of
the tool, causing injury to you or someone around
you.
• Do not use force when inserting the battery
cartridge. If the cartridge does not slide in easily, it
is not being inserted correctly.
Battery protection system (Battery cartridge
with a star mark)
1
011389
The battery cartridge with a star mark is equipped with
the protection system, which automatically cuts off the
output power for its long service life.
The tool stops during operation when the tool and/or
battery are placed under the following situation. This is
caused by the activation of protection system and does
not show the tool trouble.
• When the tool is overloaded:
At this time, release the switch trigger and
remove causes of overload and then pull the
switch trigger again to restart.
• When battery cells get hot:
If any operation of the switch trigger, the
motor will remain stopped. At this time, stop
use of the tool and cool or charge the battery
cartridge after removing it from the tool.
• When the remaining battery capacity gets low:
If any operation of the switch trigger, the
motor will remain stopped. At this time,
remove the battery cartridge from the tool and
charge it .
Blade guard
1
011238
When lowering the handle, the blade guard rises
automatically. The guard is spring loaded so it returns to
its original position when the cut is completed and the
handle is raised.
WARNING:
• Never defeat or remove the blade guard or the
spring which attaches to the guard. An exposed
blade as a result of defeated guarding may result in
serious personal injury during operation.
1. Blade guard
1. Star mark
1. Red part
2. Button
3. Battery cartridge
1. Adjusting bolt
